2. Cut-out via the end step
In addition, the motor OFF can be switched
via the end step or along with the cut-out via
the motor contactors (double protection).

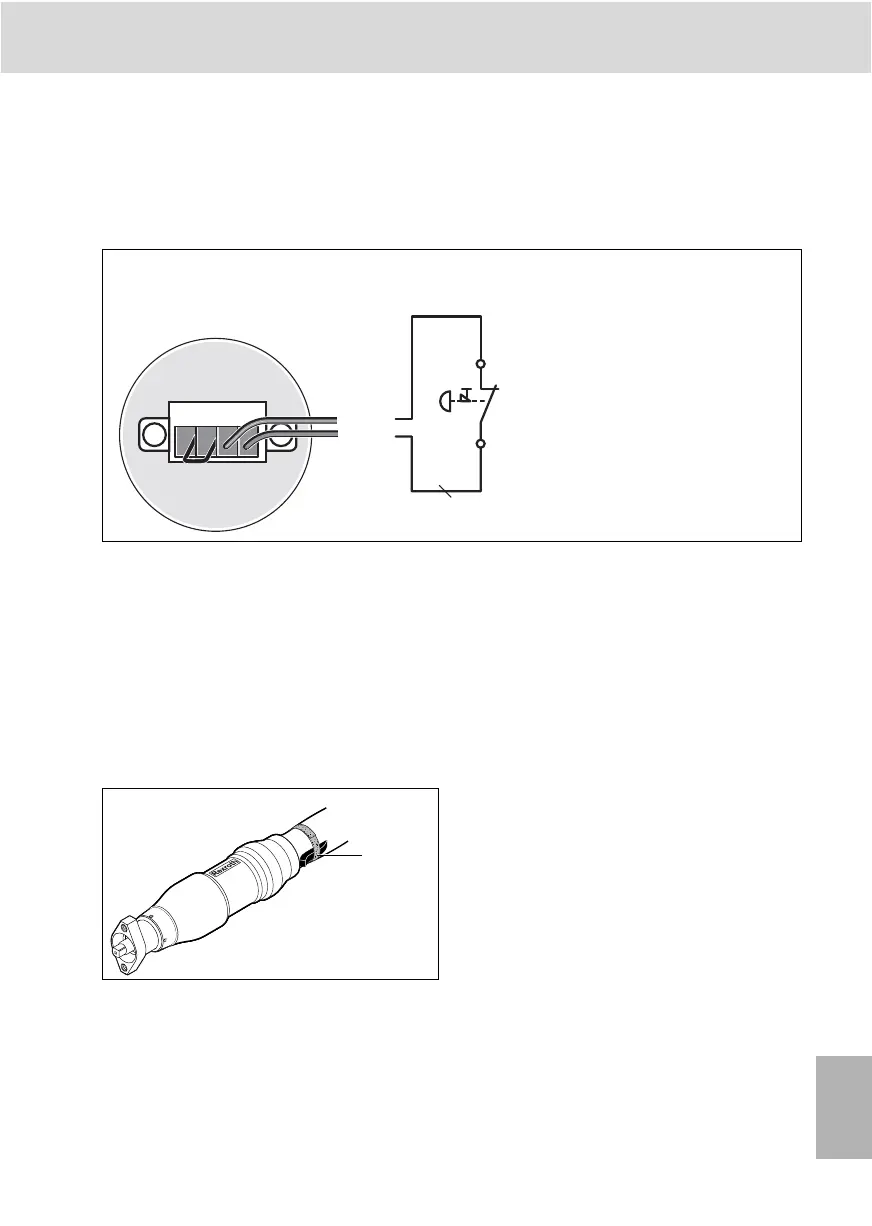

Fig. 10: Motor OFF circuit 2 (NH2) connection to the Compact System
Use of the ErgoSpin/CC-ErgoSpin hand-held nutrunner as a stationary tightening
spindle (valid for “ 1. Cut-out via the internal motor contactors” and “ 2. Cut-out via
the end step”)
If the ErgoSpin/CC-ErgoSpin hand-held nut-
runner is used as a stationary tightening spin-
dle, the start switch must be continually actu-
ated.
Fig. 11: Start switch lock on the ErgoSpin
hand-held nutrunner
1 Velcro tape (see ErgoSpin accessories)
XDN1
1
23
4
S1
Einsatz
Motor-Stopp-Schalter
1 mm
2
VEE NH2
NH2
1
