3 609 929 B45/2013-06 |
CS351/CC-CS351 Bosch Rexroth AG 101
/108
Disassembly and replacement
ENGLISH
11 Disassembly and
replacement
The Compact System must be considered a
unit.
As a result, the entire Compact System must
be exchanged if there are any defects or mal-
functions.
For complaints and repairs, please send the
fully assembled Compact System to the
supplier or our customer service workshop in
Murrhardt, Germany. Complaints and repairs
cannot be accepted if this procedure is not
followed.
Disassembling
Follow the warnings printed on the label on
the Compact System:

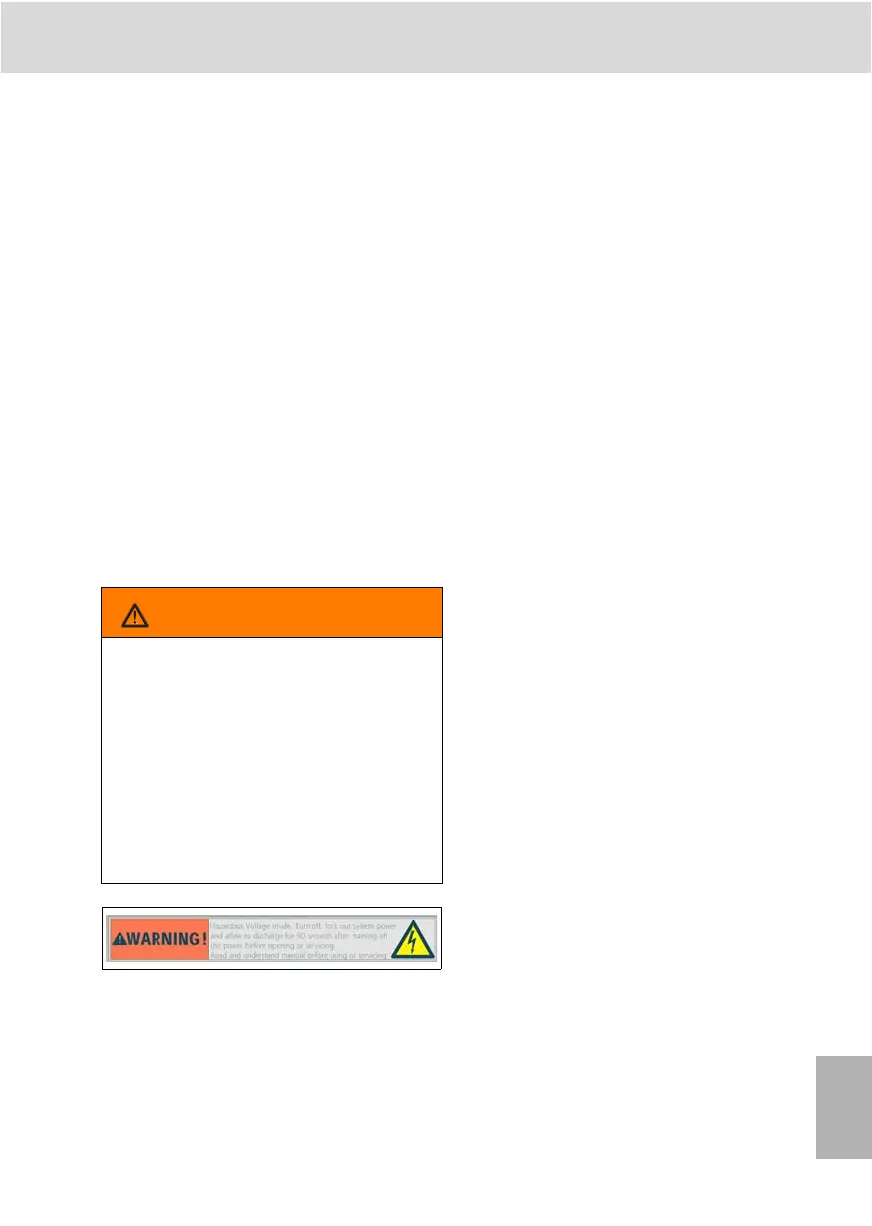

Fig. 42: Label on the Compact System
Proceed as follows to disassemble the Com-
pact System:
1. Switch off the power supply to the Com-
pact System and allow for a discharging
time of at least 90 seconds.
2. Remove the power supply connection
cable.
3. Remove the hand-held nutrunner/tighten-
ing spindle:
4. Release and open the front cover.
5. Disconnect the motor OFF equipment
and external peripherals.
6. After you have removed the module,
close off the module slot with a dummy
panel.
7. Close the front cover.
WARNING
Dangerous internal voltage!
Before opening the device or perform-
ing maintenance work, make sure that
the device is not under voltage, pro-
tect it against being switched on
again, and allow for a 90 second dis-
charging time.
Read the manual before using the
system or performing maintenance
work.
CS351_zweispaltig - D.book Seite 101 Dienstag, 16. Juli 2013 12:00 12
