Product description
ENGLISH
USB device interface (X3U3)
This interface is intended for the connection
of a PC for programming and parameteriza-
tion. It is designed as a type B socket. It is
compatible with USB 2.0 (maximum data rate
3 Mbit/s)

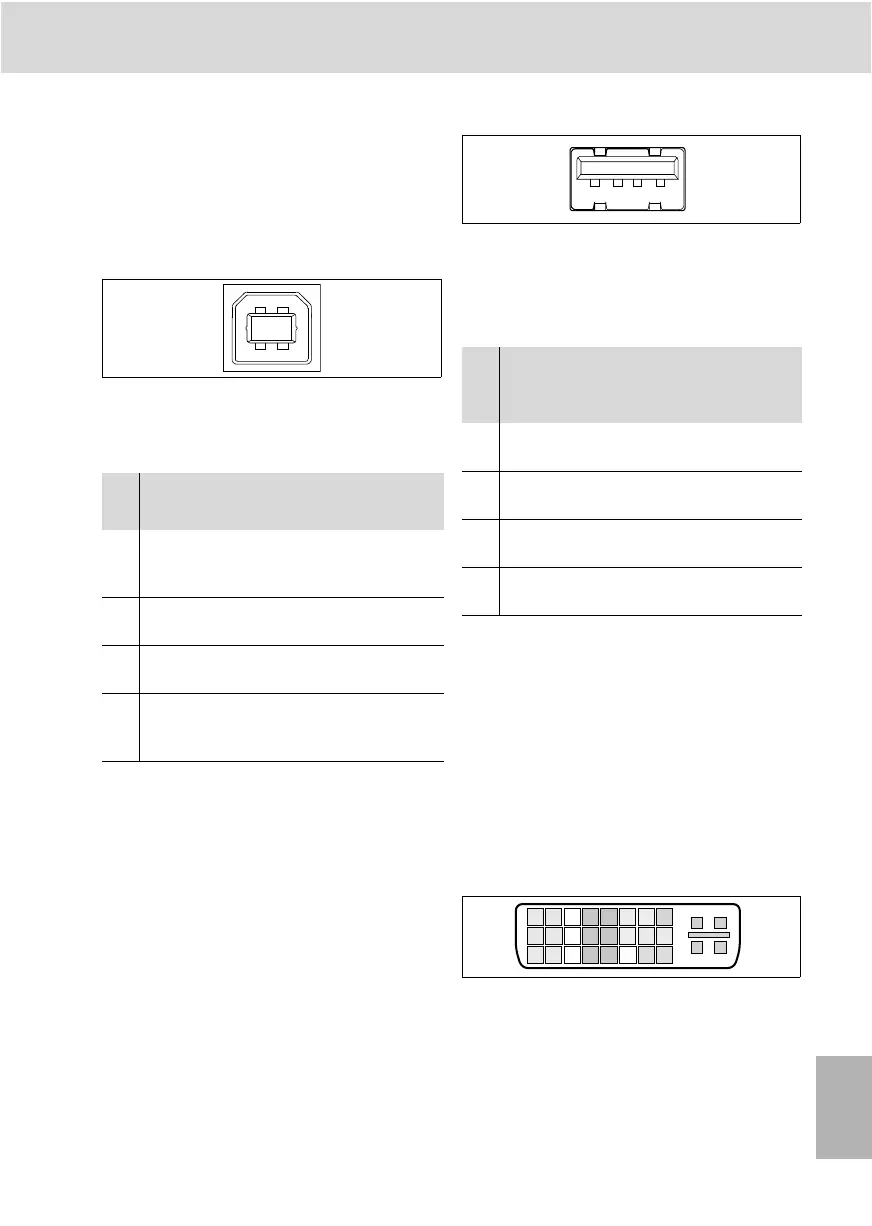

Fig. 15: USB socket, type B
USB host interfaces (X3U4)
These interfaces are designed as a type A
socket. They meet the requirements accord-
ing to USB Specification 2.0.
This interface serves as a USB return channel
for the touchscreen/mouse. For this, the de-
vice connected to the return channel must
behave like a USB mouse. The total current
for all the USB host interfaces (X3U1, X3U2
and X3U4) may not exceed 1 A.
Fig. 16: USB socket, type A
DVI interface (XDVI)
This interface is intended for the connection
of an external monitor. It is designed as a
socket in accordance with the Single Link
Digital DVI specification.
• You can connect a DVI monitor with the fol-
lowing resolutions:
– VGA (640 x 480)
– SVGA (800 x 600)
– XGA (1024 x 768)
It is not possible to connect a VGA monitor
via an interface adapter.
Fig. 17: DVI interface (XDVI)
Table 10: X3U3 assignment
Pin Signal
Description/
function
Voltage/
current
1
USB_S_VBUS 5 V supply from
PC activates
the interface
5 V= / 0.5
A
2
USB_S_Data– Send USB
data
3
USB_S_Data+ Receive USB
data
4 GND Reference po-
tential for all
voltages
PE poten-
tial
12
43
Table 11: X3U4 assignment
Pin Signal
Description/
function
Volt-
age/
current
1 VCC 5 V supply 5 V= /
0.5 A
2 USB_Data– Send USB
data
3 USB_Data+ Receive USB
data
4 GND Reference poten-
tial for all voltages
Potential
PE
1234
1
2
3
4
12
5
6
7
8
9
10
11
13
15
14
16
17
18
19
20
21 22
23
24
C1
C2
C3
C4
C5
