3 609 929 B45/2013-06 |
CS351/CC-CS351 Bosch Rexroth AG 87
/108
Commissioning
ENGLISH
The permissible installation position for the
Compact System is vertical.
During assembly, the Compact System
should have at least 10 mm space when lined
up and at least 300 mm space above it.

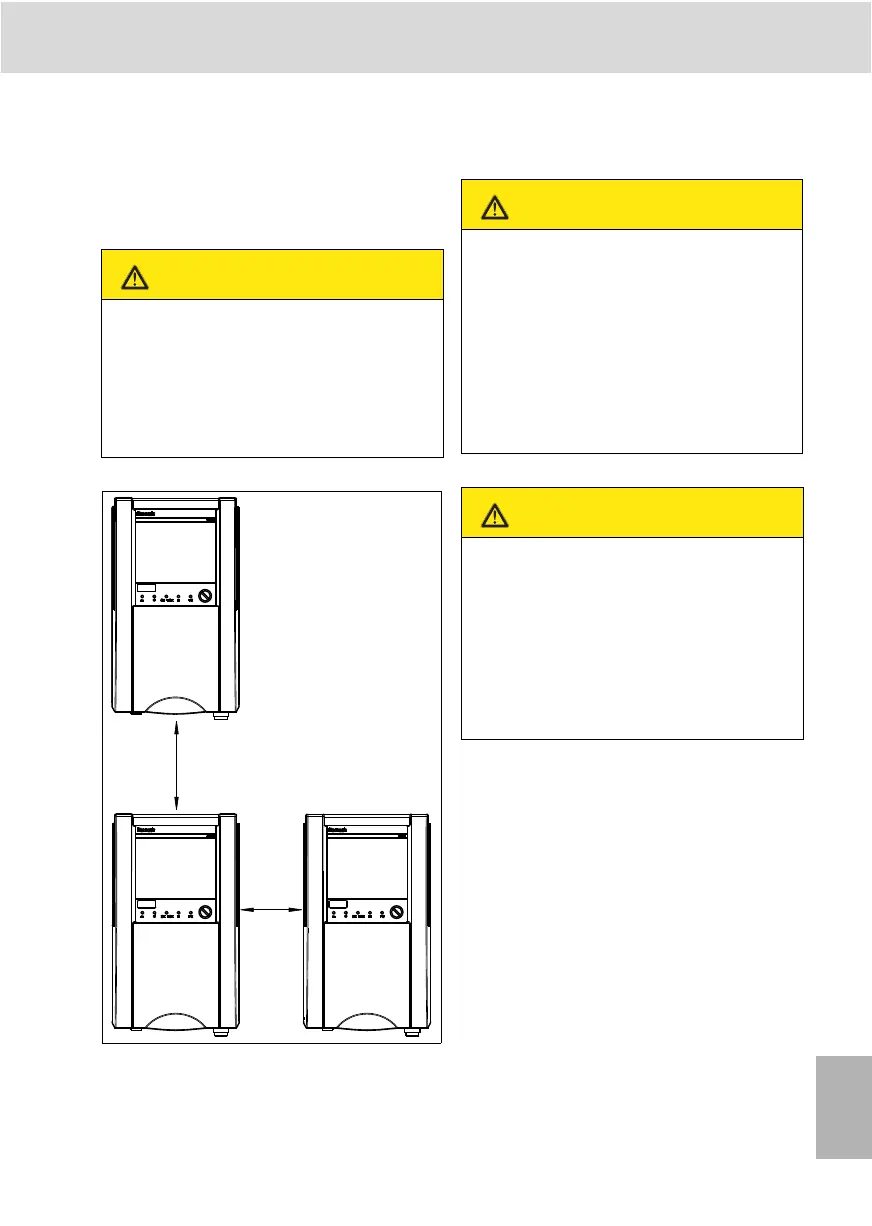

Fig. 27: Compact System distance dimensions
(dimensions in mm)
7 Commissioning
CAUTION
Overheating of the Compact System!
Damage to the Compact System caused
by overheating
Keep the air ways used for cooling at
the rear side of the system clear when
assembling the Compact System.
CAUTION
Risk of damage to persons and prop-
erty!
Commissioning of the Compact System
requires basic mechanical and electrical
knowledge.
No other persons than qualified per-
sonnel (see “Personnel qualification”
on page 59) are authorized to com-
mission the system.
CAUTION
Loss of protection class IP 54 due to
missing seals and plugs!
Liquids and foreign bodies may penetrate
and damage the product.
Prior to commissioning make
sure that all dummy panels have
been assembled and that the
front cover is closed and locked.
CS351_zweispaltig - D.book Seite 87 Dienstag, 16. Juli 2013 12:00 12
