88 /108 Bosch Rexroth AG CS351/CC-CS351 | 3 609 929 B45/2013-06
Commissioning
Removing the front cover
You can remove the front cover to improve
access to the interfaces.
1. Release and open the front cover.

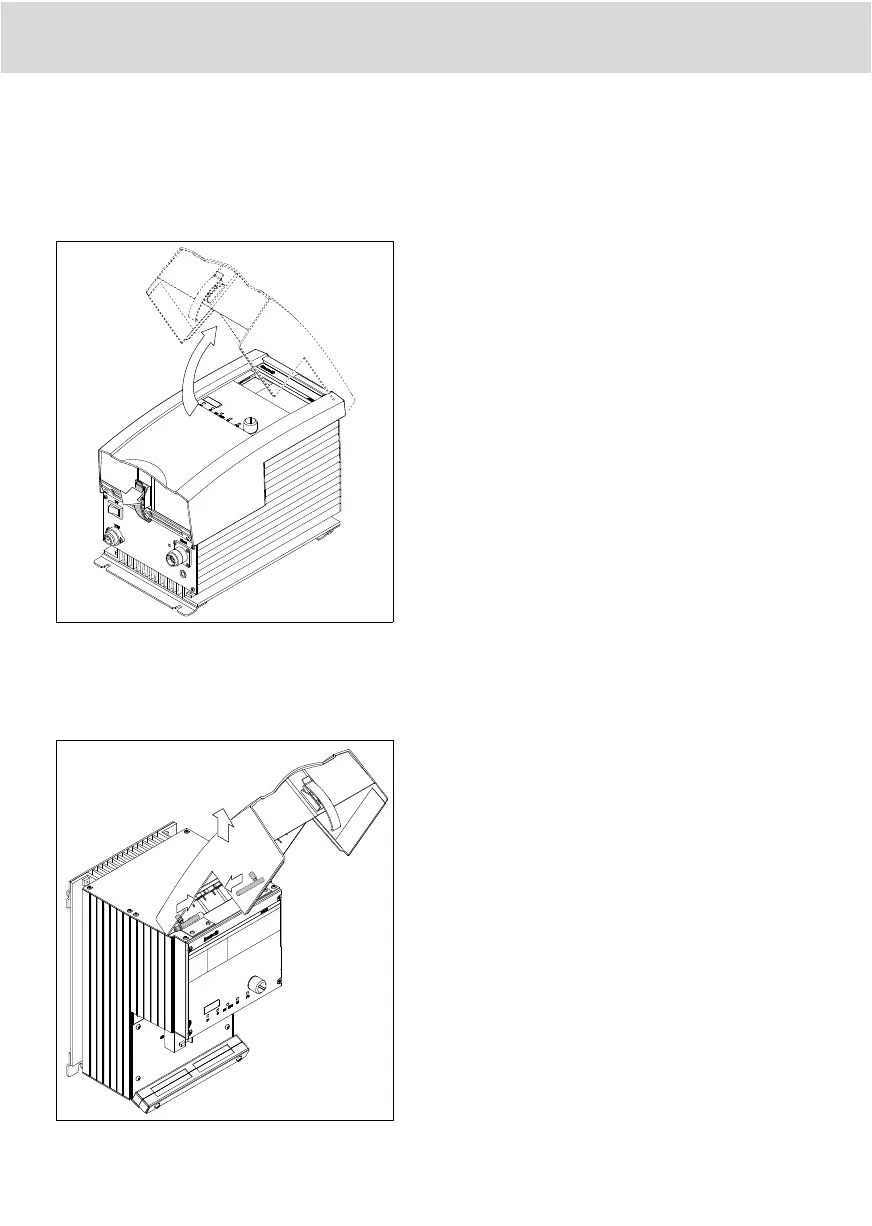

Fig. 28: Releasing and opening the front cover
2. Slide the left and right axle pins in and
remove the front cover.
Fig. 29: Removing the front cover
Assembly:
1. Push the axle pins in and insert the front
cover.
2. Release the axle pins – both axle pins
must engage in the front cover.
Commissioning the Compact System
Proceed as follows to commission the Com-
pact System:
1. Install all of the required interface mod-
ules
– Release and remove the front cover (see
page 88).
– Slide the respective module in.
– Secure the module.
2. To operate the integrated computer unit,
connect an USB mouse and keyboard
(connectors X3U6 – X3U8) as well as a
monitor (XDVI 2) (optional). Devices and
connection cables are not included in the
delivery of the Compact System.
3. Connect the Compact System to the
external peripherals (e.g. partner control-
ler or external TFT display).
4. Connect the emergency OFF equipment,
if necessary.
5. Check whether all module slots are
closed by modules or dummy panels.
6. Lay all the connection cables through the
cable duct strip:
– Open both bolts and remove the front
part of the cable duct.
– Insert all of the cables connected inside
the front cover in the cable duct.
– Assemble the front part of the cable
duct.
7. Assemble the front cover.
8. Close and lock the front cover.
1.
2.
1.
2.
1.
