3 609 929 B45/2013-06 |
CS351/CC-CS351 Bosch Rexroth AG 93
/108
Maintenance and repair
ENGLISH
9 Maintenance and repair
9.1 Repair
Reset function of the Compact System

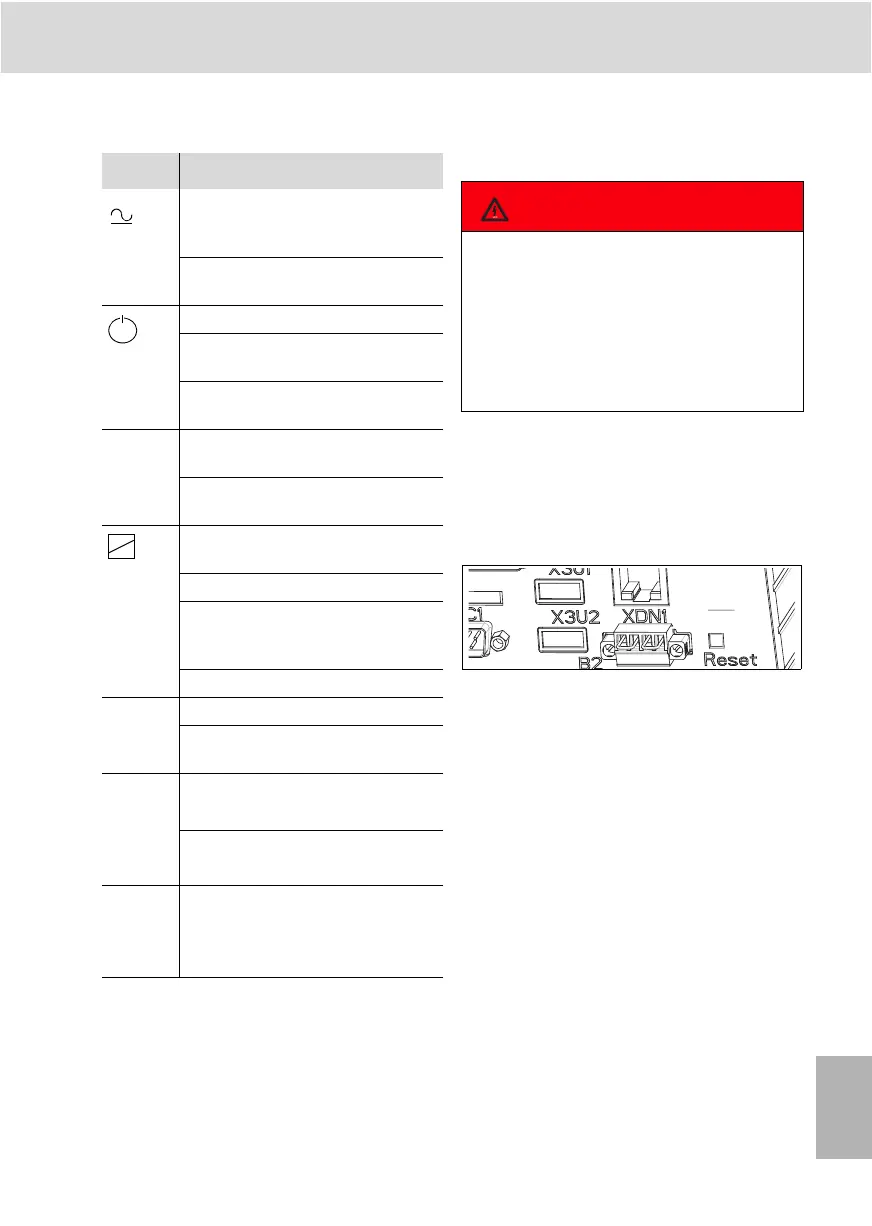

Fig. 35: Reset button
A software reset is generated if the reset but-
ton is briefly pressed, i.e. for < 1 second. The
controller is reset once the button is re-
leased.
A hardware reset is generated if the reset
button is pressed for a long period, i.e. for >
3 seconds. The controller and servo amplifier
are reset once the button is released.
Table 18: LED modes
LED Color Diagnosis
Off No power supply or low-
voltage power supply avail-
able
Blue Power supply and low-volt-
age power supply available
Green Ready for operation
Green
Flashing
Not ready for operation, but
no system error
Red
Flashing
System fault
OK/NOK Green Tightening case evaluation:
OK
Red
Flashing
Tightening case evaluation:
NOK
Off Motor contactor
not picked up
Green Motor contactor operated
Red/
green,
flashing
Servo amplifier initialization
Red Motor contactor error
FG Green Servo amplifier release
Off No enable
Servo amplifier
RUN/
STOP
(only for
CS... IL)
Green Integrated logic activated
Red
Integrated logic deactivat-
ed
ERROR
(only for
CS... IL)
Red
Flashing
Integrated logic error
DANGER
Electrical voltages!
Electrocution
Only perform maintenance work on
the tightening channel if the Compact
System has been switched off and the
power plug disconnected. Protect the
system against being switched on.
CS351_zweispaltig - D.book Seite 93 Dienstag, 16. Juli 2013 12:00 12
