Product description
Ethernet interface X7E1
The interface has an 8-pin RJ45 socket (10/
100 Base T) design.

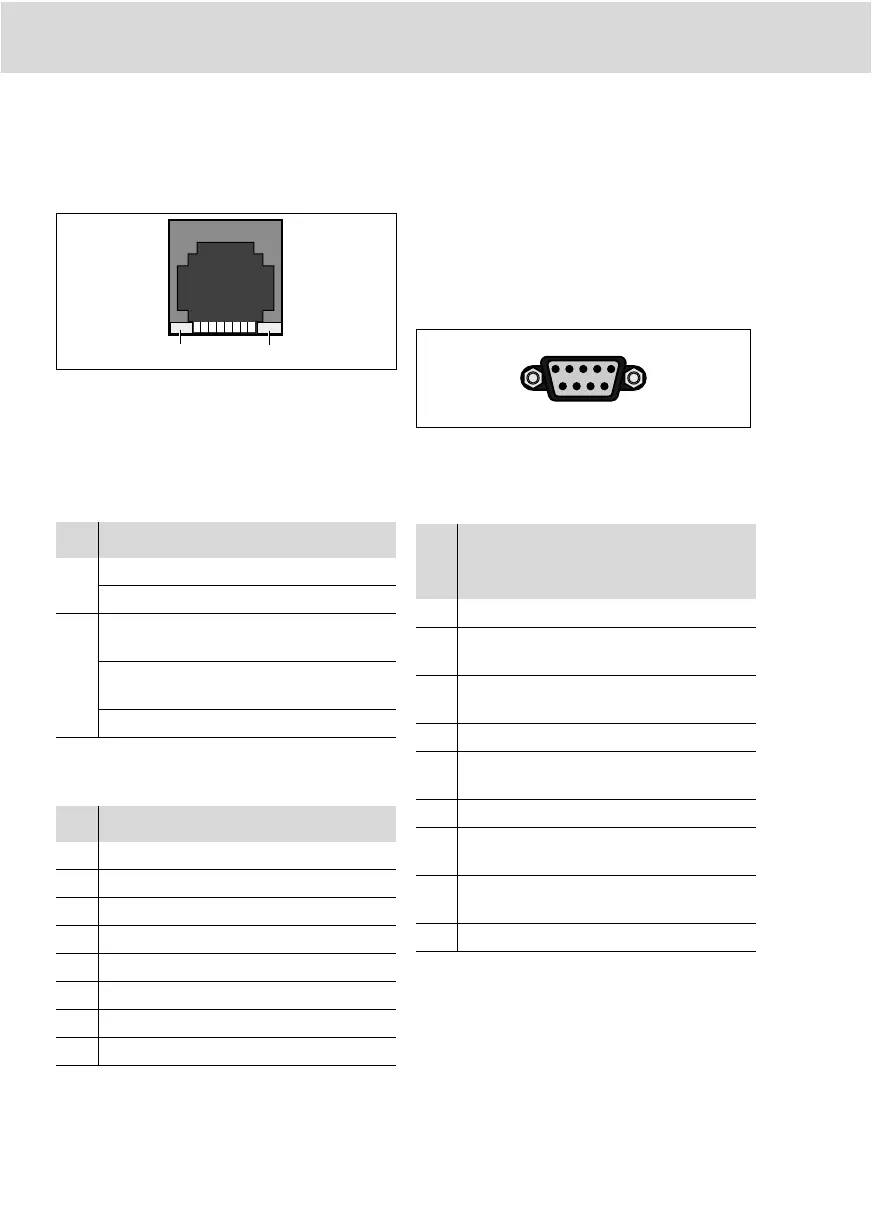

Fig. 12: RJ45 socket, 8-pin
1 Yellow LED
2 Green LED
The MAC address can be found on the name
plate on the top of the Compact System.
RS232 interface X3C1
This interface is intended to connect a printer
or scanner. The maximum data transmission
rate is 115 kbit/s.
Fig. 13: Sub-D plug, 9-pin
Table 6: LED states
LED State Display/description
1 Yellow Transfer speed 100 Mbit/s
Off Transfer speed 10 Mbit/s
2 Green Connection to network is ac-
tive
Green
Flashing
Data transfer running
Off No connection to network
Table 7: X7E1 assignment
Pin Signal Description/function
1 Transmit + Ethernet transmission cable
2 Transmit – Ethernet transmission cable
3 Receive + Ethernet reception cable
4n.c.
5n.c.
6 Receive – Ethernet reception cable
7n.c.
8n.c.
1
2
Table 8: X3C1 assignment
Pin
Sig-
nal
Description/
function
Voltage/cur-
rent/stan-
dard
1-
2 RxD RS232 receive –12 V to
+12 V, RS232
3 TxD RS232 send –12 V to
+12 V, RS232
4- - -
5 GND Reference po-
tential logic
6-
7 RTS RS232
Request send
–12 V to
+12 V, RS232
8 CTS RS232
Enable send
–12 V to
+12 V, RS232
9-
15
69
CS351_zweispaltig - D.book Seite 74 Dienstag, 16. Juli 2013 12:00 12
