3 609 929 B45/2013-06 |
CS351/CC-CS351 Bosch Rexroth AG 95
/108
Maintenance and repair
ENGLISH

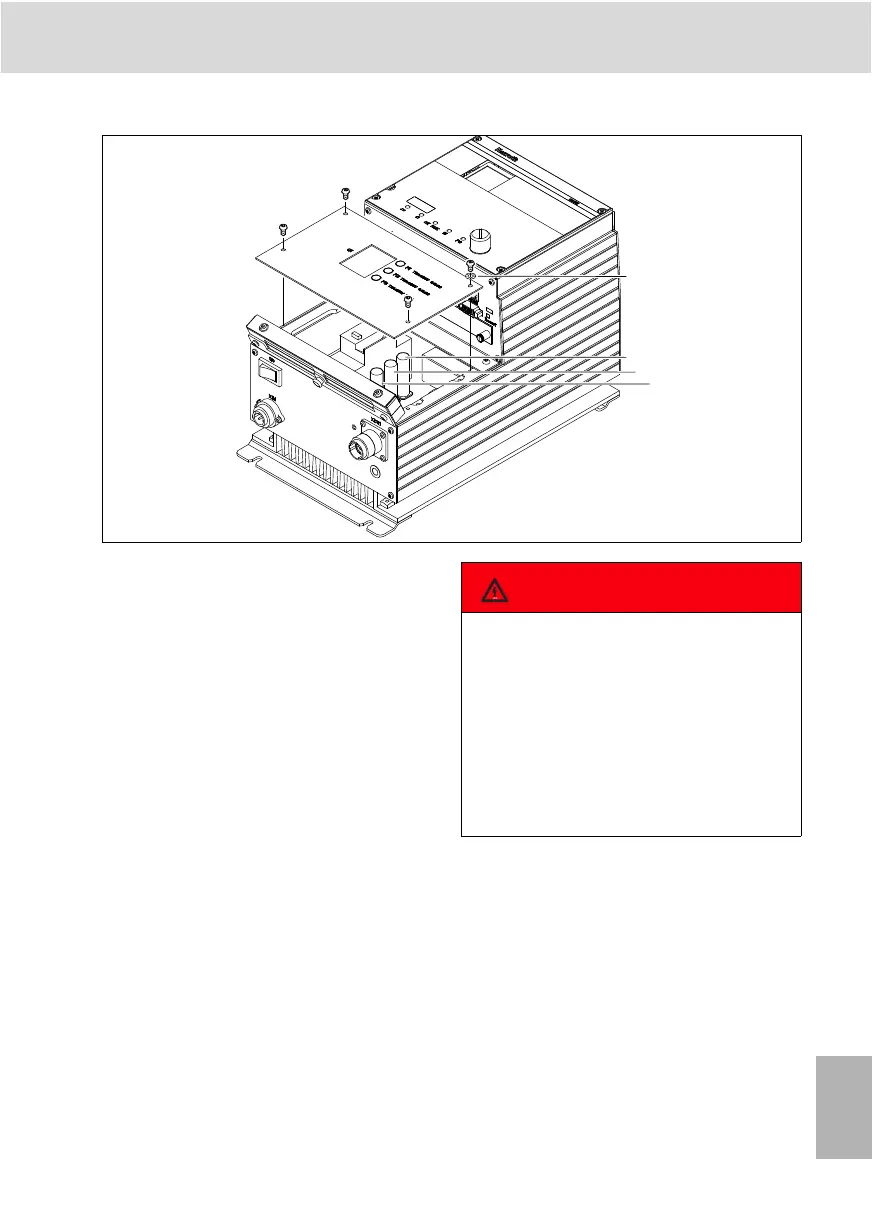

Fig. 37: Fuses
F1 Main circuit fuse Si 10 A, 250 V,
6.3x32 mm slow-blow,
Manufacturer: ESKA/ENDRICH, order
number UL632.727
F2 Main circuit fuse Si 10 A, 250 V,
6.3x32 mm slow-blow,
Manufacturer: ESKA/ENDRICH, order
number UL632.727
F3 Controller fuse 2 A STG 5x20mm T
Manufacturer: LITTELFUSE, type:
0215002)
1 Tooth lock washer to ensure grounding of
the front plate
Assemble the front plate. The tightening
torque for the bolts is 1.4 + 1 Nm.
F1
1
F2
F3
DANGER
Electrical voltages!
Electrocution
Make sure when assembling the front
plate that the tooth lock washer (with
the ground symbol) is assembled on
the top right bolt. A low impedance
connection of the front plate to
ground is only ensured if the washer
is assembled.
CS351_zweispaltig - D.book Seite 95 Dienstag, 16. Juli 2013 12:00 12
