► Tapping again the switching area Bypass reinserts the antenna tuner
again into the transmit path.

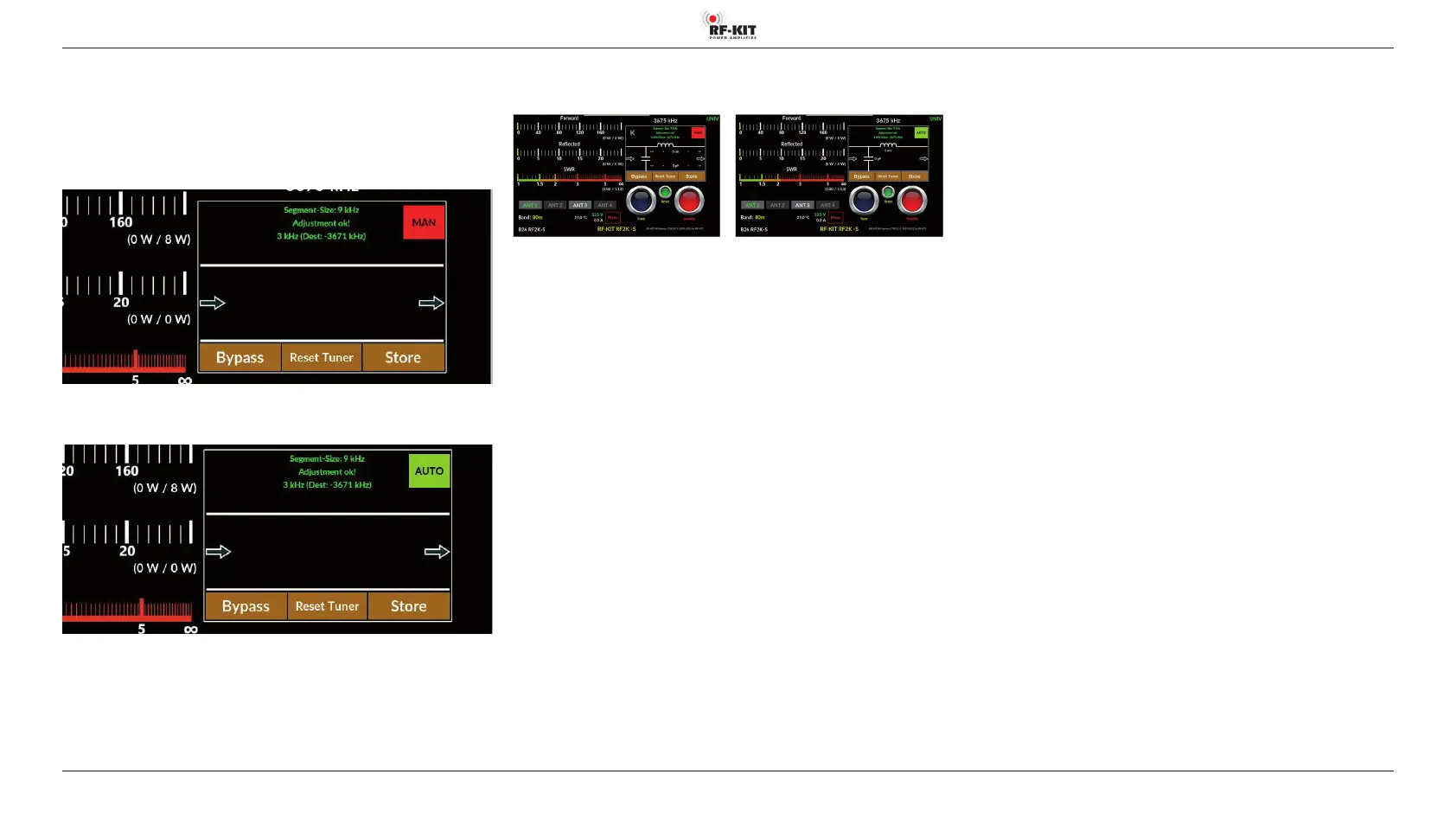

Mode „MAN“ Mode „AUTO“
6.6 Bypass the antenna tuner
For testing purposes, or when using resonant antennas or an external
antenna tuner, the internal antenna tuner may be taken out of the transmit
path.:
► Mode “MAN“: Tap at switching area Bypass to bypass the
antenna tuner.
► Mode “AUTO“: Tap at switching area Bypass to bypass the
antenna tuner.
