RGBlink M1 User Manual

M1 User Manual
11

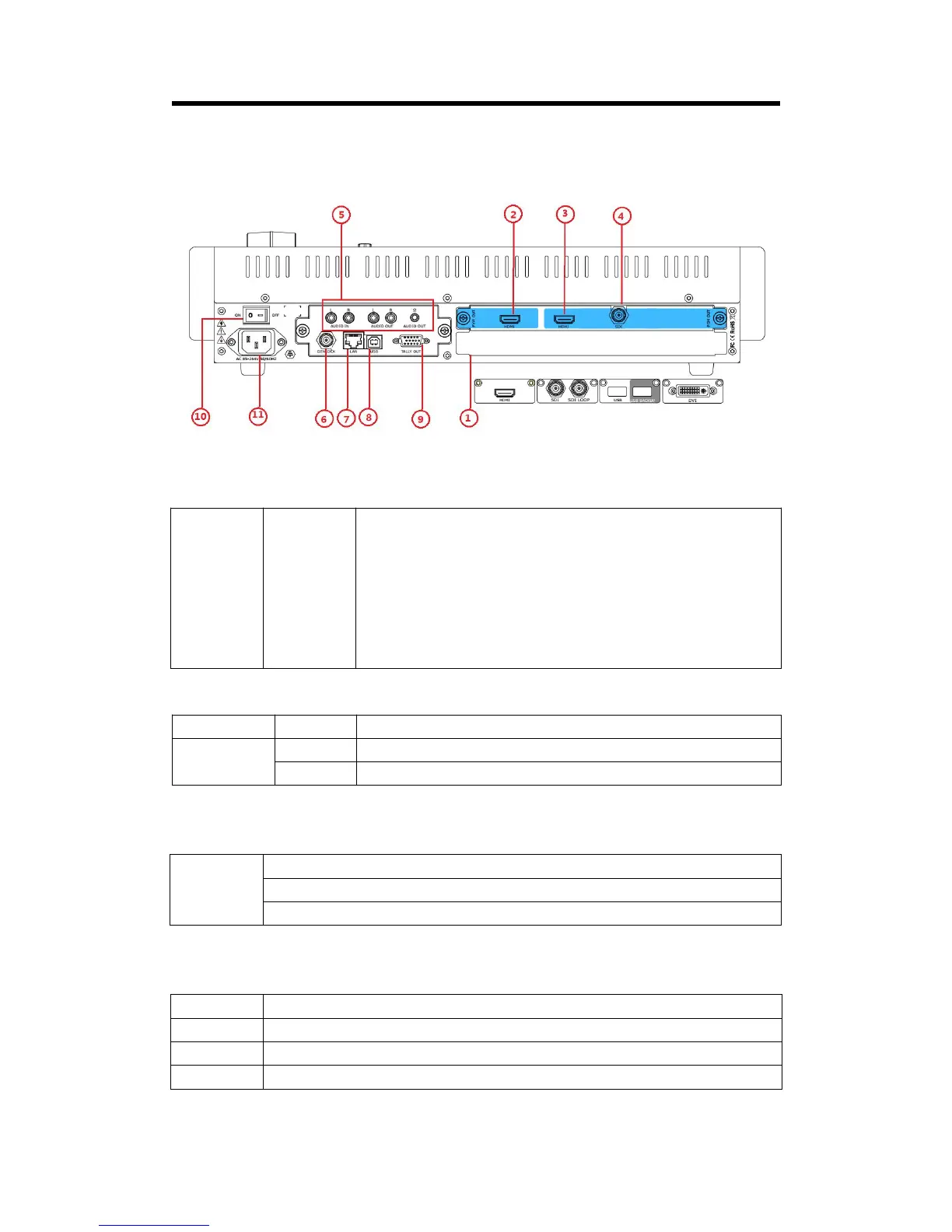

1.2.2 Rear Panel
Input Interface
Optional
Input
Module
1
4 input card slots, supports input signals including DVI, HDMI,
USB, SDI.
Each DVI module supports 1 DVI-I input and compatible CVBS,
VGA,YPbPr.
Each HDMI module supports 1 HDMI-A input.
Each USB module supports 1 USB-B input and 1 USB backup.
Each SDI module supports 1 SDI input and 1 SDI loop out.
Output Interface
PVW Output
2
HDMI output
PGM Output
3
HDMI output
4
SDI output (optional, not standard)
Audio Area
5
Audio In
Audio Out
Audio Out( Earphone)
Control Interface
6
Genlock input BNC port
7
LAN port RJ-45
8
USB port USB-A
9
TALLY Light
