Freeze
Live Freeze A Freeze B Freeze All
PGM Freeze On/Off

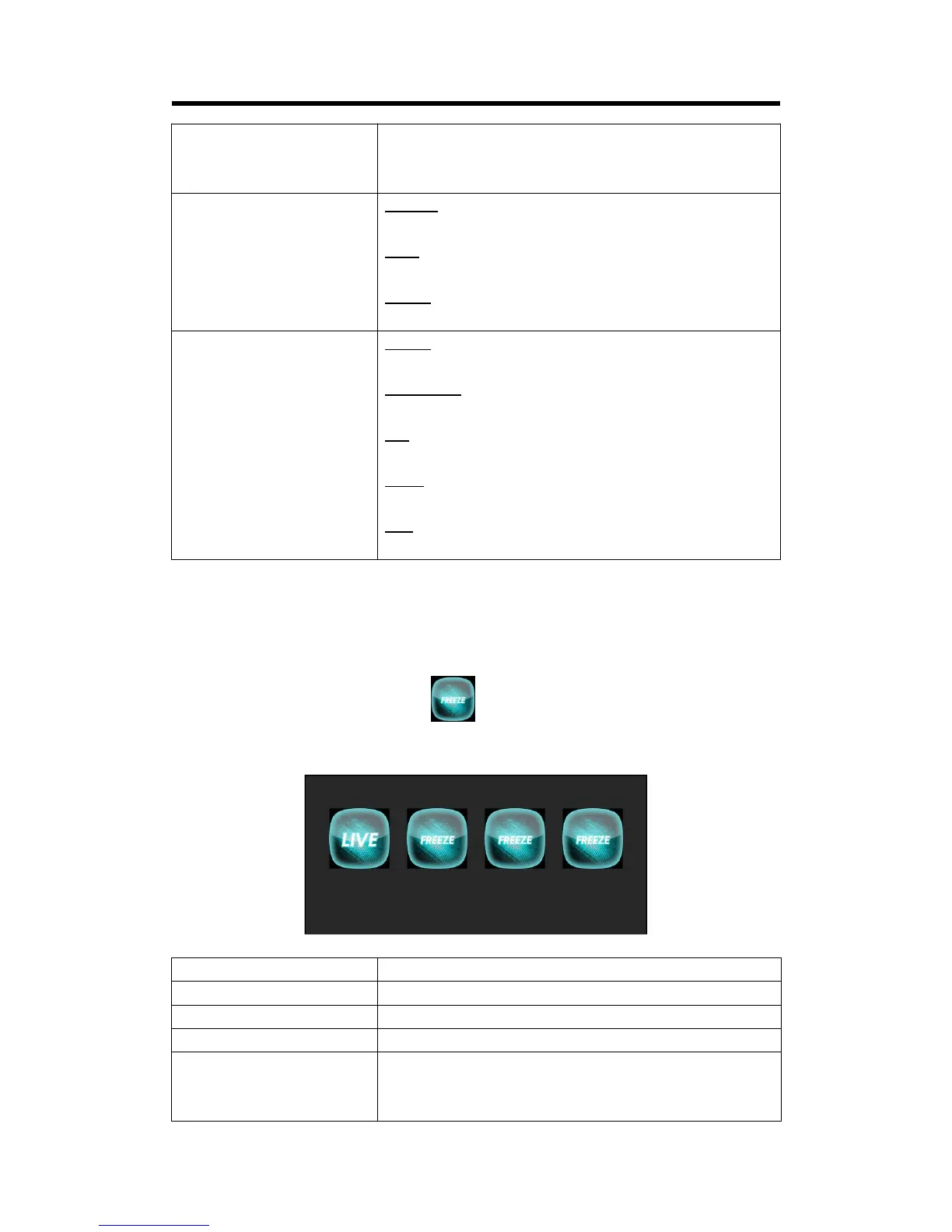

3.3.3 FREEZE
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [FREEZE] option in
LCD screen, push the knob or touch the icon directly to confirm, and enter the menu as
follows:
Set the vertical size of output signal.
Enable or disable horizontal polarity.
Enable or disable vertical polarity.
External Sync
External
Select On or Off to enable or disable external sync.
Input
Show the input signal.
Format
Show the resolution of input signal.
Test Pattern
Output
Select PST or PGM.
Test Pattern
Select Color Bar, Solid Color or disable the function.
Red
The adjustment range is from 0 to 255.
Green
The adjustment range is from 0 to 255.
Blue
The adjustment range is from 0 to 255.
Live
When freeze the layer, users can select this icon to live.
Freeze A
Freeze layer A.
Freeze B
Freeze layer B.
Freeze All
Freeze layer A and layer B.
PGM Freeze
Select PST Freeze or PGM Freeze. Touch “ON” on LCD screen,
then PGM Freeze enable; Touch “OFF”, then PST Freeze
enable.
