Rhymebus RM6F5 series User Manual

Chapter6 Parameter Description of Pump
121
6

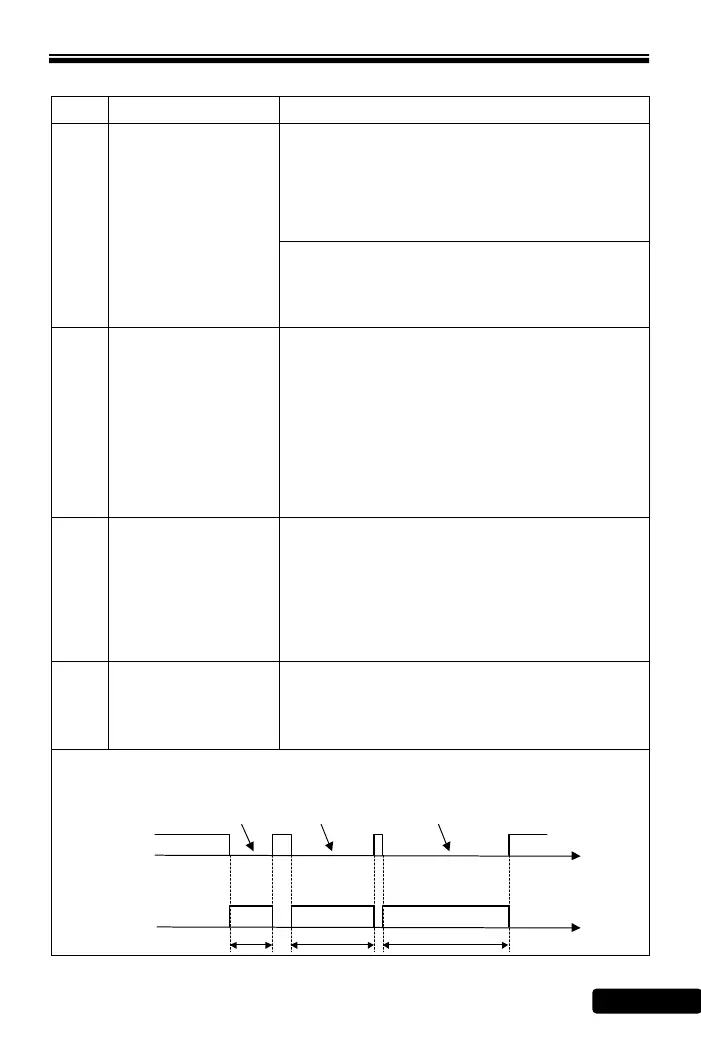

6-8 Error Trip Disposals
Func.
Name
Description
F_079
Auto-Restart Selection
for Error Trip Condition
=0: Short time interval to auto-restart according to the
setting of F_080 (OC,OE,GF only).
*Drive will trip to stop, when the numbers of drive errors
(only OC,OE,GF) occurs over the setting of F_080
(Numbers of Auto-Restart at Drive’s Error Trip).
*OC(Drive over current), OE(Over voltage), GF(Grounding
fault).
=1: Long time interval to auto-restart according to the
setting value of F_080, F_083 (all errors except
“Fb Lo”).
*Drive will auto-restart by the time interval setting of F_083
(Error Tripping Time Interval before Auto-Restart).
F_080
Maximum Reset Times
of Error Trip Conditions
․Set the counting number for drive auto-restart when
errors occur.
Note: When the numbers of drive’s auto-restart reach
the setting value of F_080, the drive must be
restarted manually.
*The drive will auto-restart according to the setting value
after tripping to stop.
*When the setting value sets to ―0‖, the drive will not
restart after an error occurs.
*If a drive is operating over 24hrs without any error trip,
the drive will automatically reset the counting number.
F_083
Time Interval of Drive
Auto-Restart
․Set the error tripping time interval before drive auto
restarts for F_079 (Auto-Restart Selection of Error
Trip) when the drive trips to stop.
*Unit: 10sec; Default value = 6: F_083= 6x10sec = 60sec
※Error tripping time interval (counting number is
defined by the drive internal counter.
*1
st
time interval = 1 x F_083; 2
nd
time interval = 2 x F_083
3
rd
time interval = 3 x F_083 and so on.
F_091
Fault Record
․Display the latest 5 error records.
*The first one record is the latest error message, and
represented by the number of ―1‖.
*Selecting ―CLF‖ parameter of F_154 can clear error
records.
1.When the drive trips to stop, the drive will auto-restart with the time interval (the number of
error trip * F_083). If the auto-restart times are over the setting of F_080 (Number of
Auto-Restart at Drive’s Error Trip), the drive must be restarted manually.
Drive
operation
1*F_083
Error
detection
(except Fb Lo)
2*F_083 3*F_083
Time
Time
1
st
Error trip 2
nd
Error trip 3
rd
Error trip
. . . . .
. . . . .
