Rhymebus RM6F5 series User Manual

Chapter 6 Parameter Description of Pump
124
6
6-11 Compensation for Pipe Friction Loss
Func.
Name
Content
F_171
Shutoff
Head(H)
Setting "shut-off" head of a pump.
Range: 0.1~160.0 bar (default value:12.0)
F_172
Maximum
Flow (Q)
Setting maximum flow of pump.
Range: 0.0~6000.0 L/min (default value:300.0)
F_173
Pipe friction
loss
compensation
0: Disable
1: Enable
F_174
Current in
Maximum
Flow (I
Qmax
)
Setting current in maximum flow. (I
Qmax
)
Range: 1~200% (default value:100)
F_175
Current in
Minimum Flow
(IQmin)
Setting current in minimum flow. (I
Qmax
)
Range: 1~200% (default value:30)
F_176
Pump Flow
Rate
Compensation
for Pipe
Friction Loss
(HCOMP max)
Setting Pipe Friction Loss in maximum flow.
Range:0.1~160.0 bar (default value:0.0)
F_177
Response
Time
Compensation
of Pipe
Friction Loss
Setting Response Time Compensation for Pipe Friction Loss.
Range:0.1~255 (default value:40)

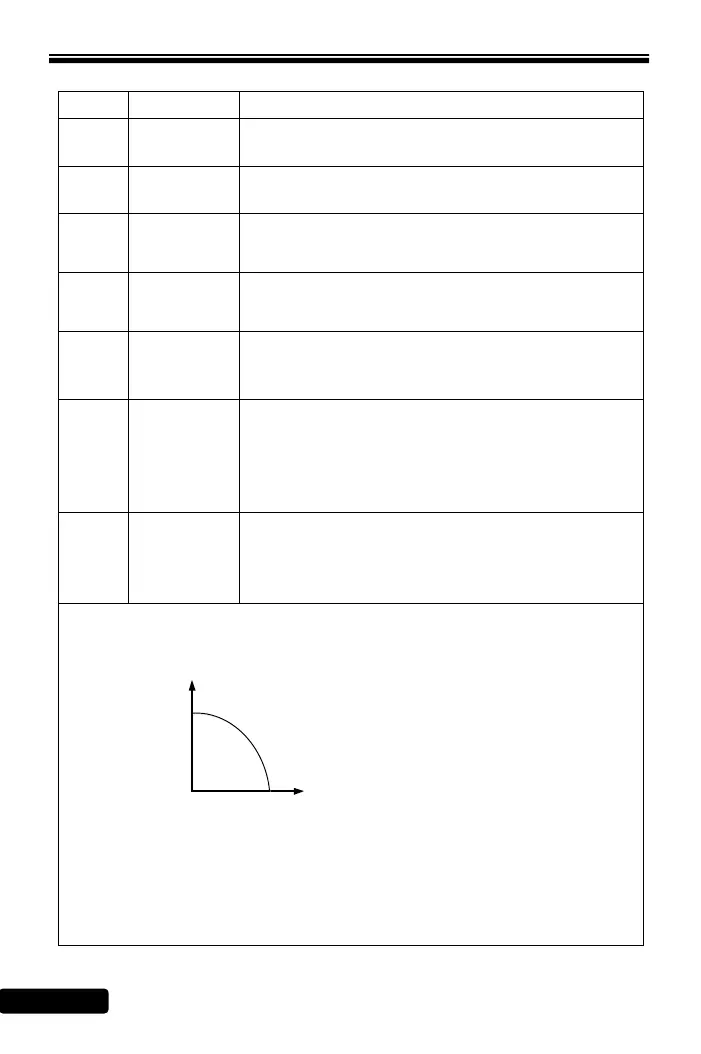

1. Maximum flow of pump curve (Q) and shutoff head (H)
Head(bar)
流量(GPM)
Maximum flow
Shutoff
head
2. According compensation of pipe friction loss which makes end pressure reach a
constant pressure.
3. Compensation of Pipe Friction Loss:
H
COMP
= (Output current - I
Qmin
) / (I
Qmax
- I
Qmin
)* H
COMP max
