Chapter 2 Installation and Confirmation
Chapter 2 Installation and Confirmation
2-1 Basic Equipment
The drive needs the several components for the conjunctive operation. These
components are called ―basic equipment‖, listed in the following:
2-1-1 Power Source: The voltage with three-phase of the power source must
meet the drive specifications.
2-1-2 MCCB or NFB: MCCB (Molded Case Circuit Breaker) or NFB (No Fuse
Breaker) can withstand the inrush current at instant power ON and
provide the overload and over-current protection to the drive.
2-1-3 Drive: The main device of motor control must be chosen in accordance
with the rated voltage and current specifications of motor (please refer to
1-2 RM6F5 standard specifications of drives).
2-1-4 Motor: The specifications of motor are determined from the requirement.
Please be cautious to the motor rated current that must not exceed the
drive current.
2-2 Installing the Drive
For the safe operation of the drive, please be cautious to the environmental
conditions where the drive is going to be installed.
2-2-1 AC Power: AC power input must be complied with the AC power input
specification of the drive.(see RM6F5 series standard specifications)

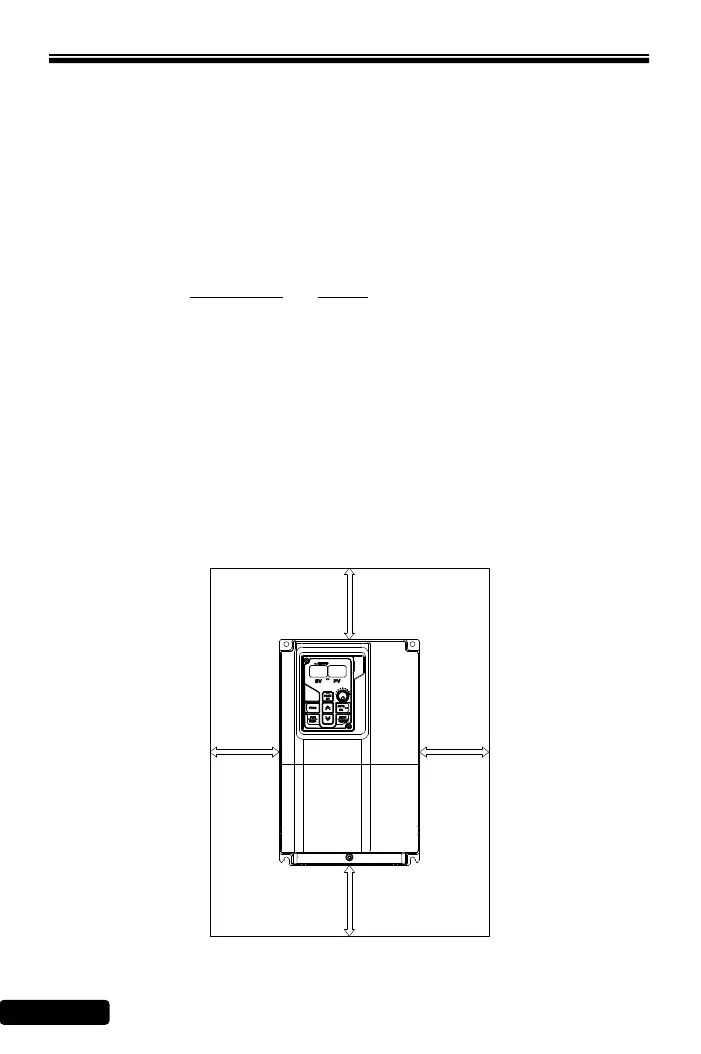

2-2-2 Location: Due to the heat dissipating requirement during the drive
operation, please install the drive with clearance space (shown as below
figure) around the drive. Therefore, the location of installation shall be
arranged as follows:
10cm 以上
5cm 以上
10cm 以上
5cm 以上
