10 August, 2001 SCANNING
2-1
Detailed
Descriptions
2. DETAILED SECTION DESCRIPTIONS
2.1 SCANNING
2.1.1 OVERVIEW

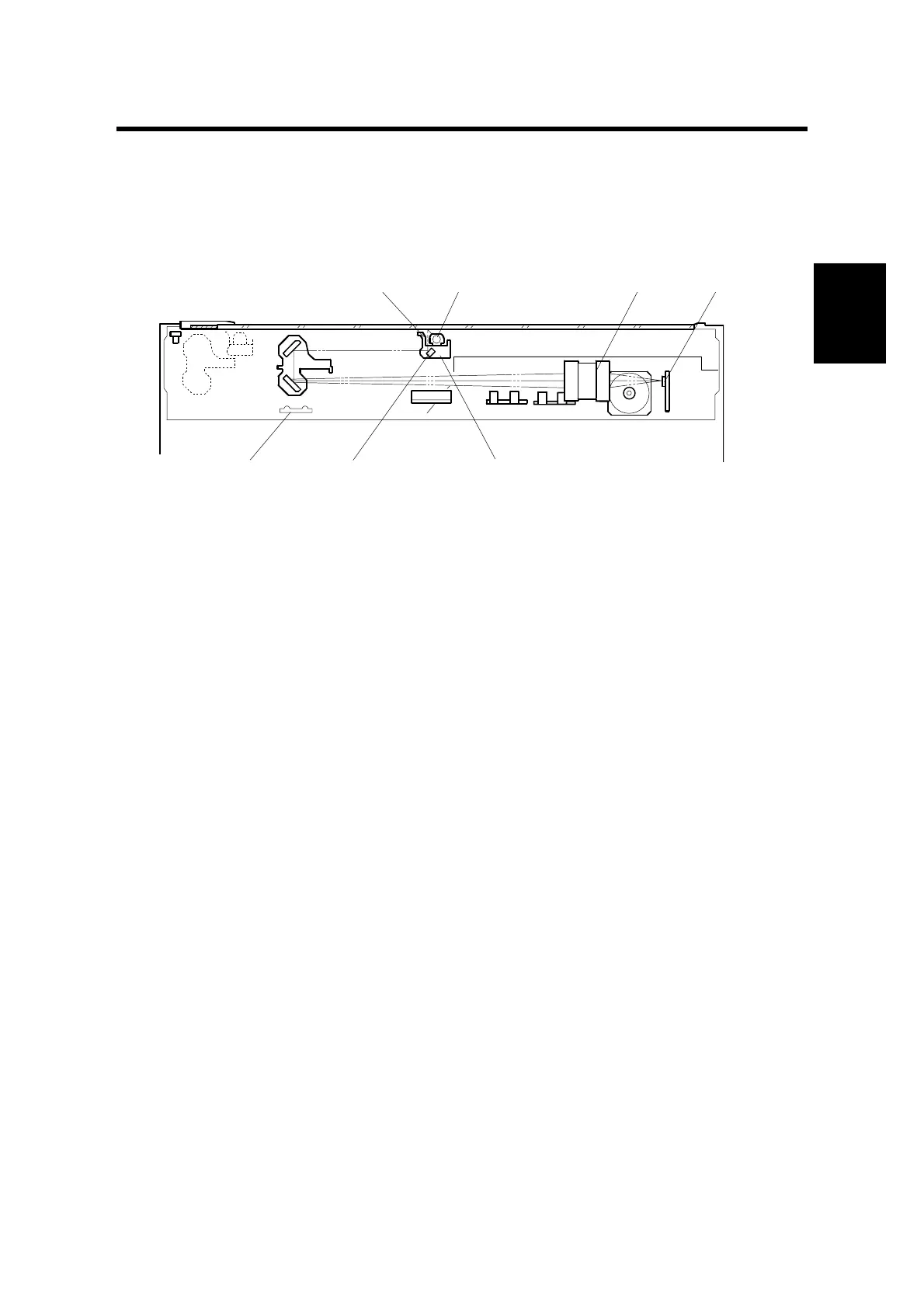

The original is illuminated by the exposure lamp (a xenon lamp in this model) [A].
The image is reflected onto a CCD (charge coupled device) [B] via the 1st, 2nd, 3rd
mirrors, and lens [C].
The 1st scanner [D] consists of the exposure lamp, a reflector [E], and the 1st
mirror [F].
A lamp stabilizer energizes the exposure lamp. The light reflected by the reflector is
of almost equal intensity, to reduce shadows on pasted originals.
An optics anti-condensation heater [G] is available as an option. It can be installed
on the left side of the scanner. It turns on whenever the power cord is plugged in.
B027D556.WMF
[A] [B][C]
[D]
[E]
[F]
[G]
