Fusing/Exit
D017/D018/D019/D020 3-34
SM

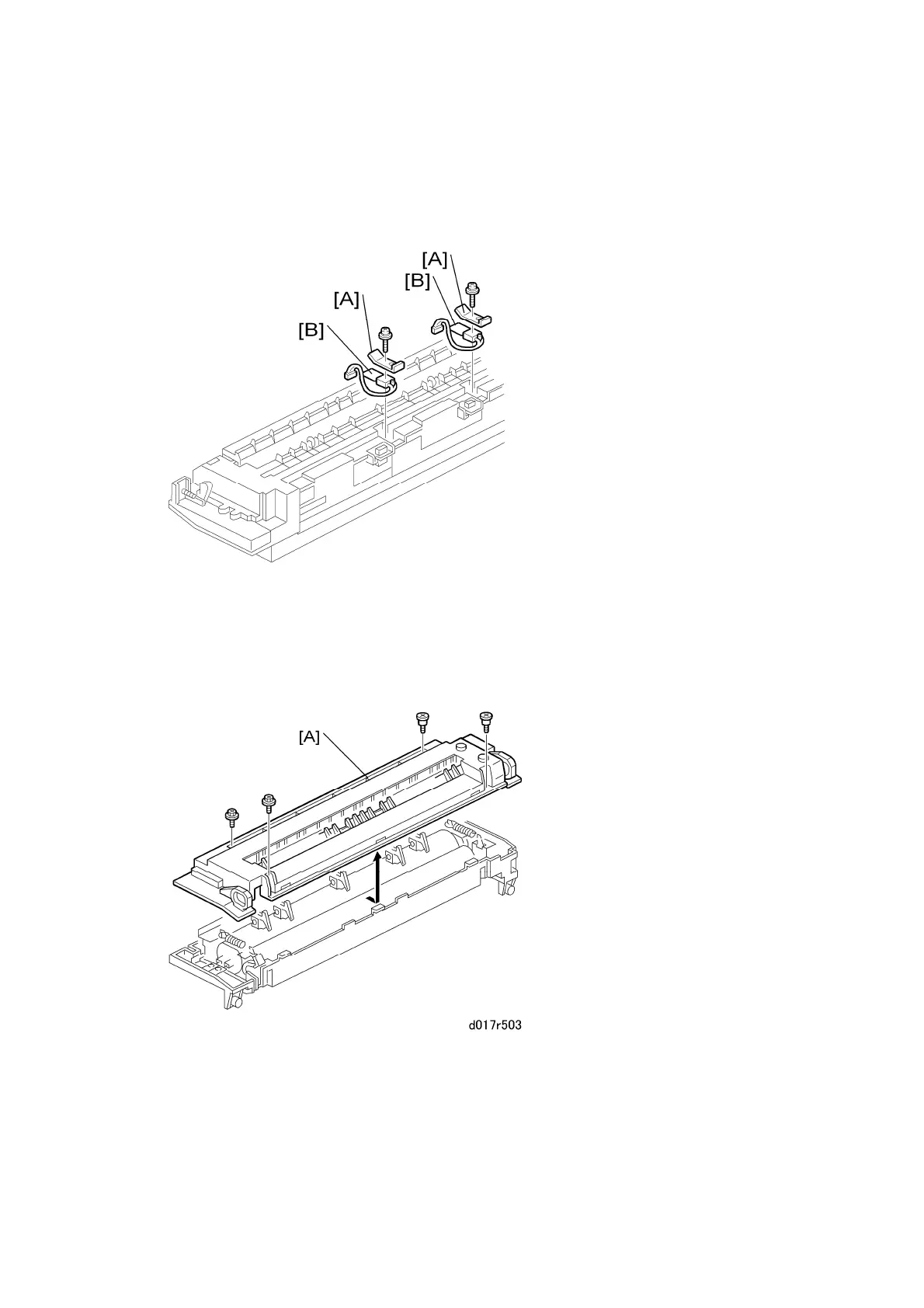

3.7.2 THERMISTORS
1.
Remove the fusing unit. (See ‘Fusing Unit’.)
2.
Remove the plates [A] (
x1 each).
3.
Replace the thermistors [B] (
x1).
3.7.3 THERMOSTATS
1.
Remove the fusing unit. (See ‘Fusing Unit’.)
2.
Remove the fusing upper cover [A] (
x4).
165
167
