Key Counter (B452)
SM 1-57 D017/D018/D019/D020
Installation
1.16 KEY COUNTER (B452)
1.16.1 INSTALLATION PROCEDURE
 Disconnect the copier power cord before you start this procedure.

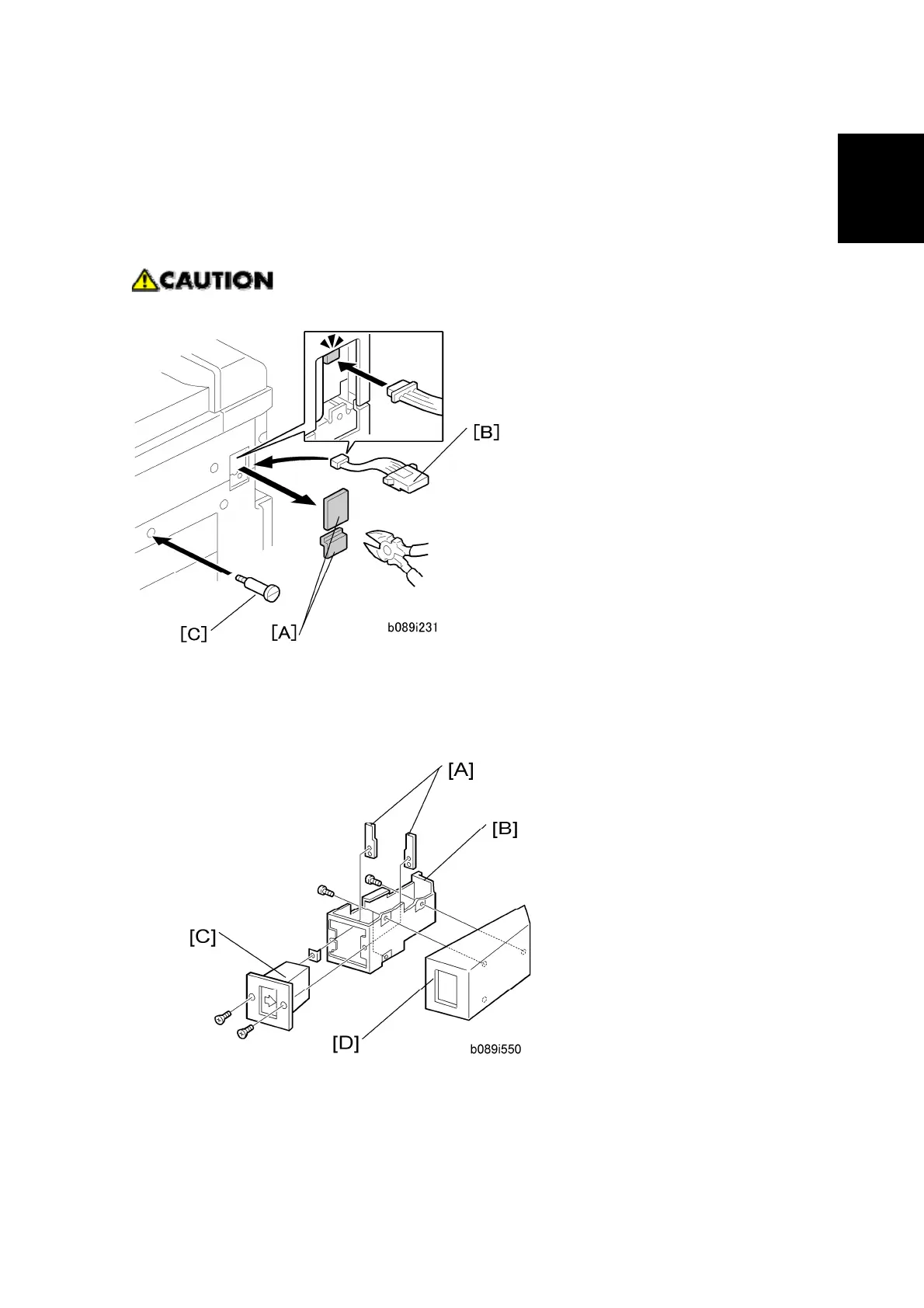

1. Remove two caps [A].
2. Connect the key counter cable [B].
3. Install the stepped screw [C].
4. Hold the key counter plate nuts [A] on the inside of the key counter bracket [B] and
insert the key counter holder [C].
5. Secure the key counter holder to the bracket ( x 2).
To Next Page
