Fusing/Exit
D017/D018/D019/D020 3-38 SM

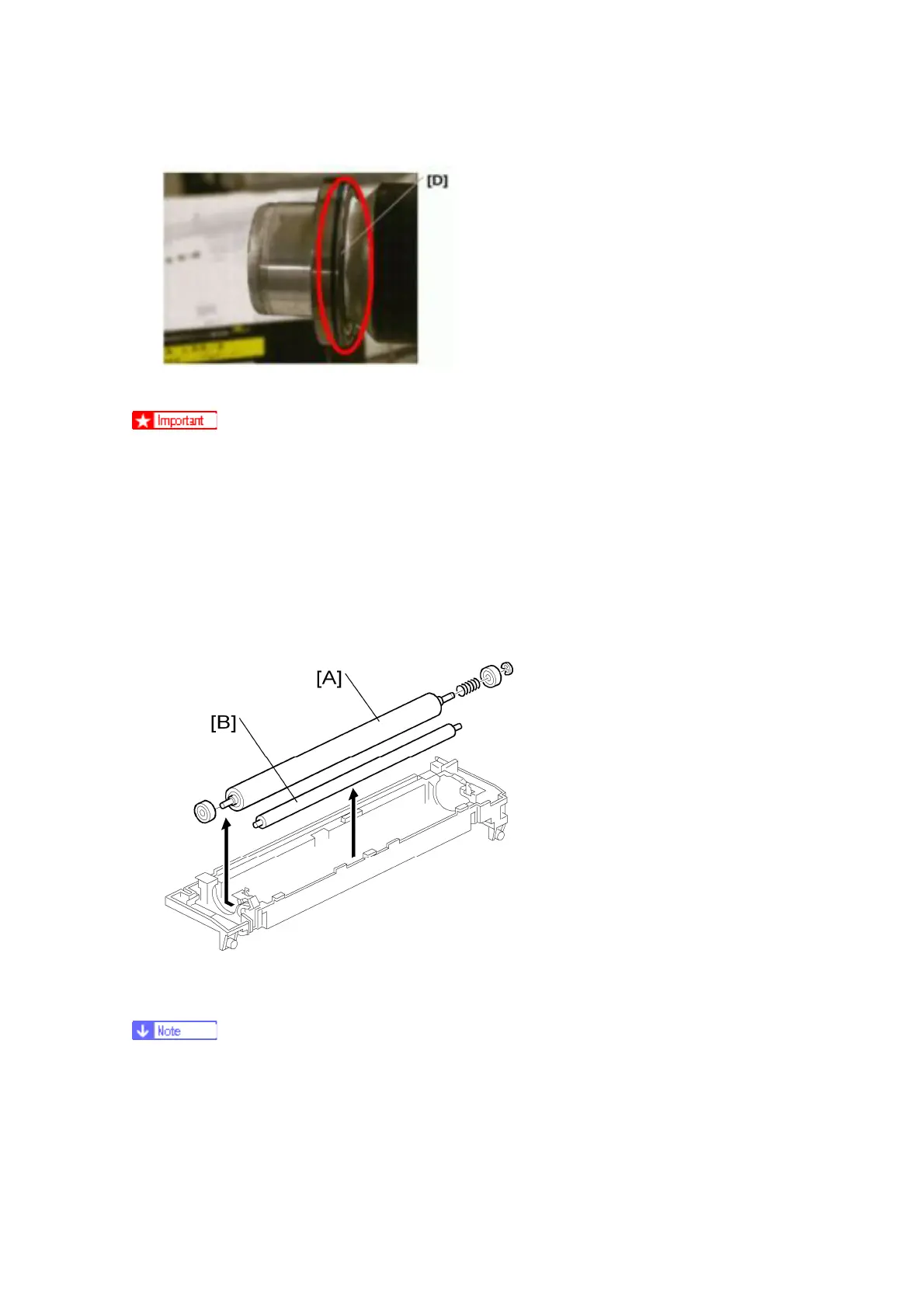

3. The grease should be visible after reattaching the bushing [D].
Before you install the new hot roller, peel off 3 cm (1 inch) from both ends of the
protective sheet on the new roller.
Do not touch the surface of the rollers.
When reinstalling the fusing lamp, secure the front screws first.
Be careful not to damage the surface of the hot roller.
3.7.5 PRESSURE ROLLER/CLEANING ROLLER
1. Remove the fusing lamp and hot roller assembly. (See ‘Hot Roller and Fusing Lamp’.)
2. Replace the pressure roller [A] ( x1, Bushings x2, Spring x1).
3. Replace the cleaning roller [B].
Apply grease (Barrierta) to the inner surface of the bushing for the pressure roller.
Do not touch the surface of the rollers.
