Paper Feed
SM 3-49 D017/D018/D019/D020
Replacement
and
Adjustment

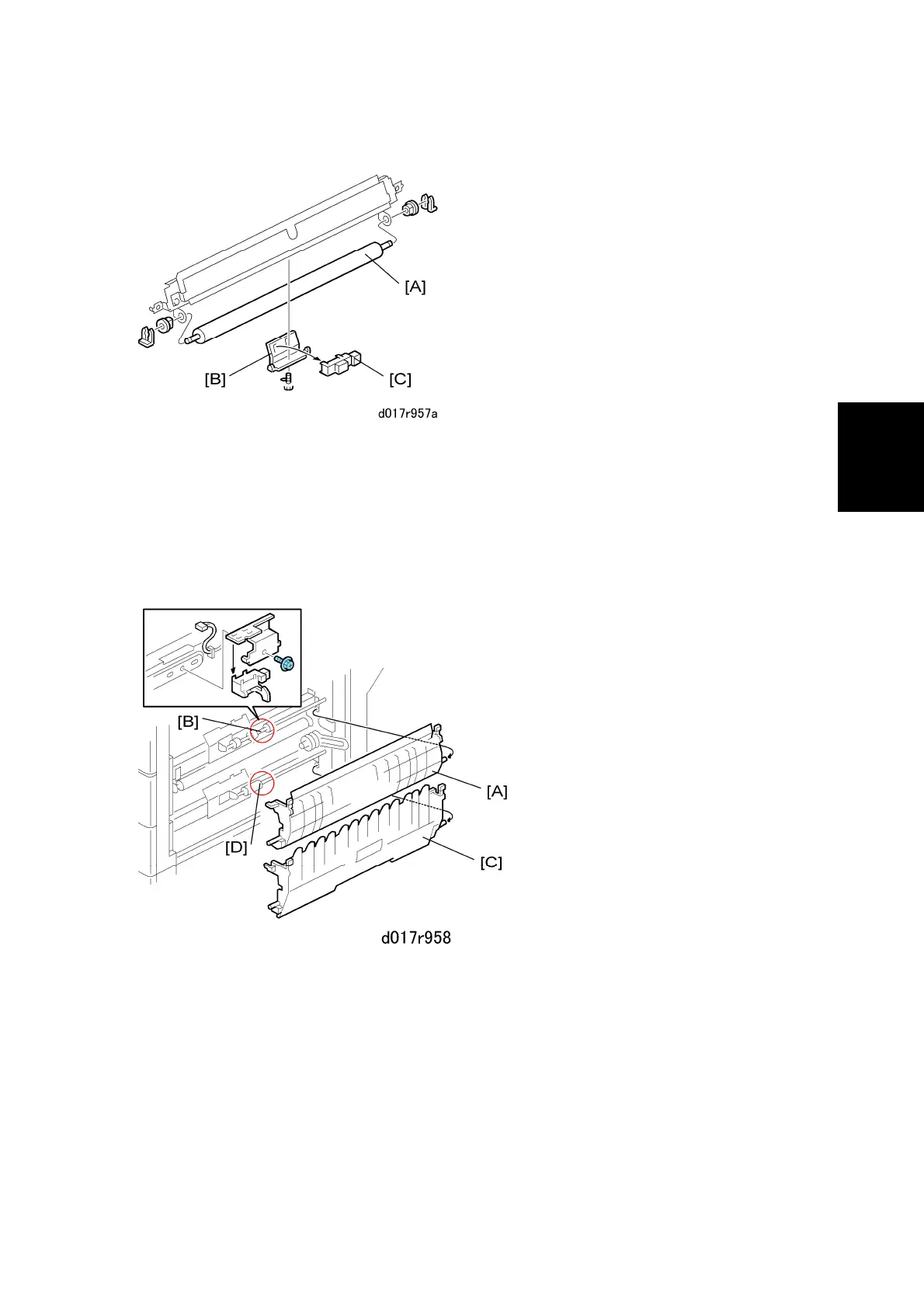

1. Remove:
[A] Registration roller ( x2, Bushings x2)
[B] Registration sensor bracket ( x1)
[C] Registration sensor (Pawls x4)
3.8.11 UPPER, LOWER RELAY SENSORS
1. Remove:
Right cover
-or-
Duplex unit if it is installed (See the previous section)
2. Remove:
[A] Upper cover
[B] Upper relay sensor (Bracket x1, x1, Pawls x4)
To Next Page
