Ricoh Aficio SP C820DN User Manual

The printer should always be lifted by at least four people.

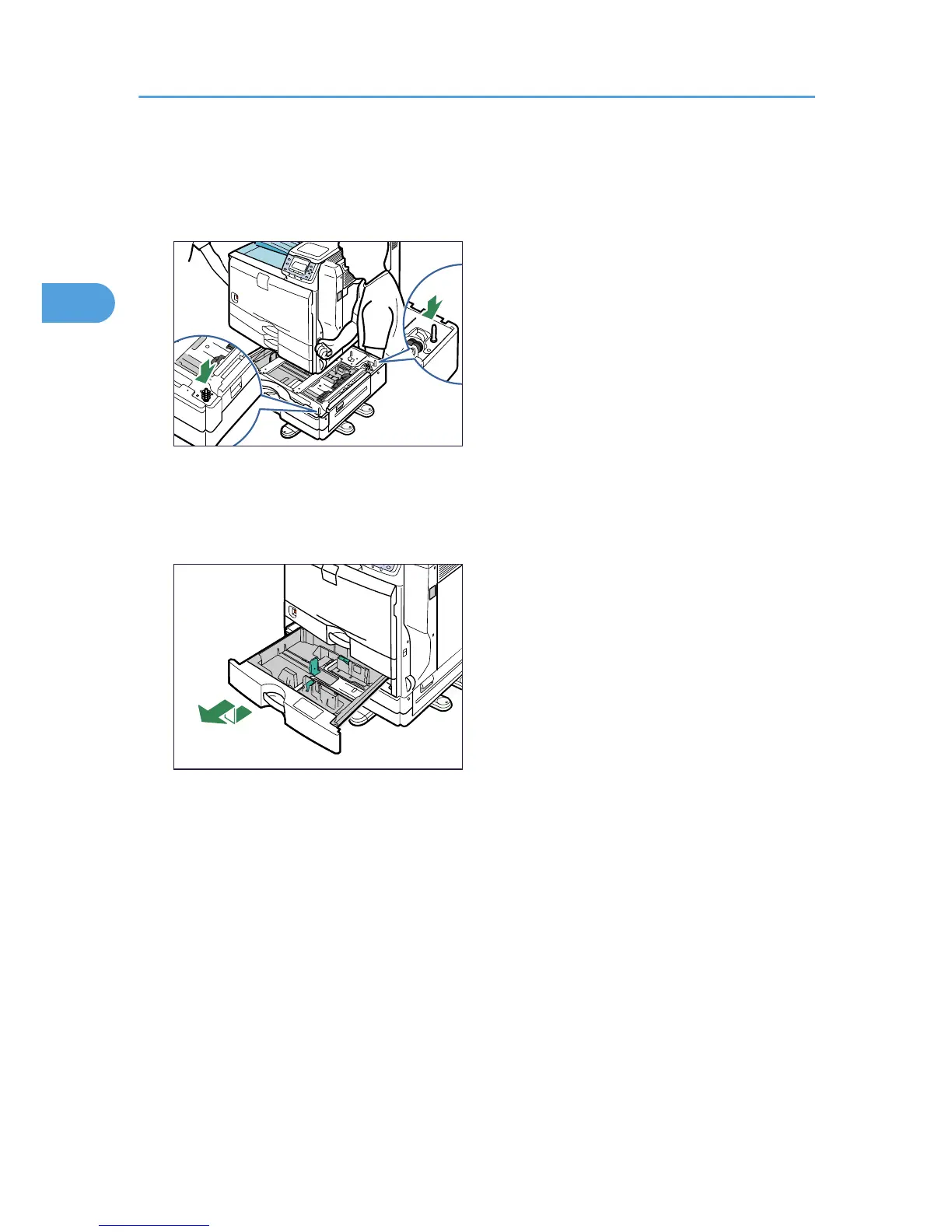

7. Align the front of the printer with the front of the paper feed unit, and slowly lower it.
Place it so that it is held firmly in place by the vertical pins.
BMW045S
Return the handle you pulled out from the printer to its original position.
8. Pull tray 2 of the printer out slowly until it stops, then lift the front of the tray slightly, and
pull it out completely.
BMW046S
Place the tray on a flat surface.
9. Attach a screw in the hole on the left side of the tray opening to secure the printer to the
paper feed unit.
Tighten the screw firmly using a coin.
2. Installing Options
42
2
