Guide to the Printer
19
Inside

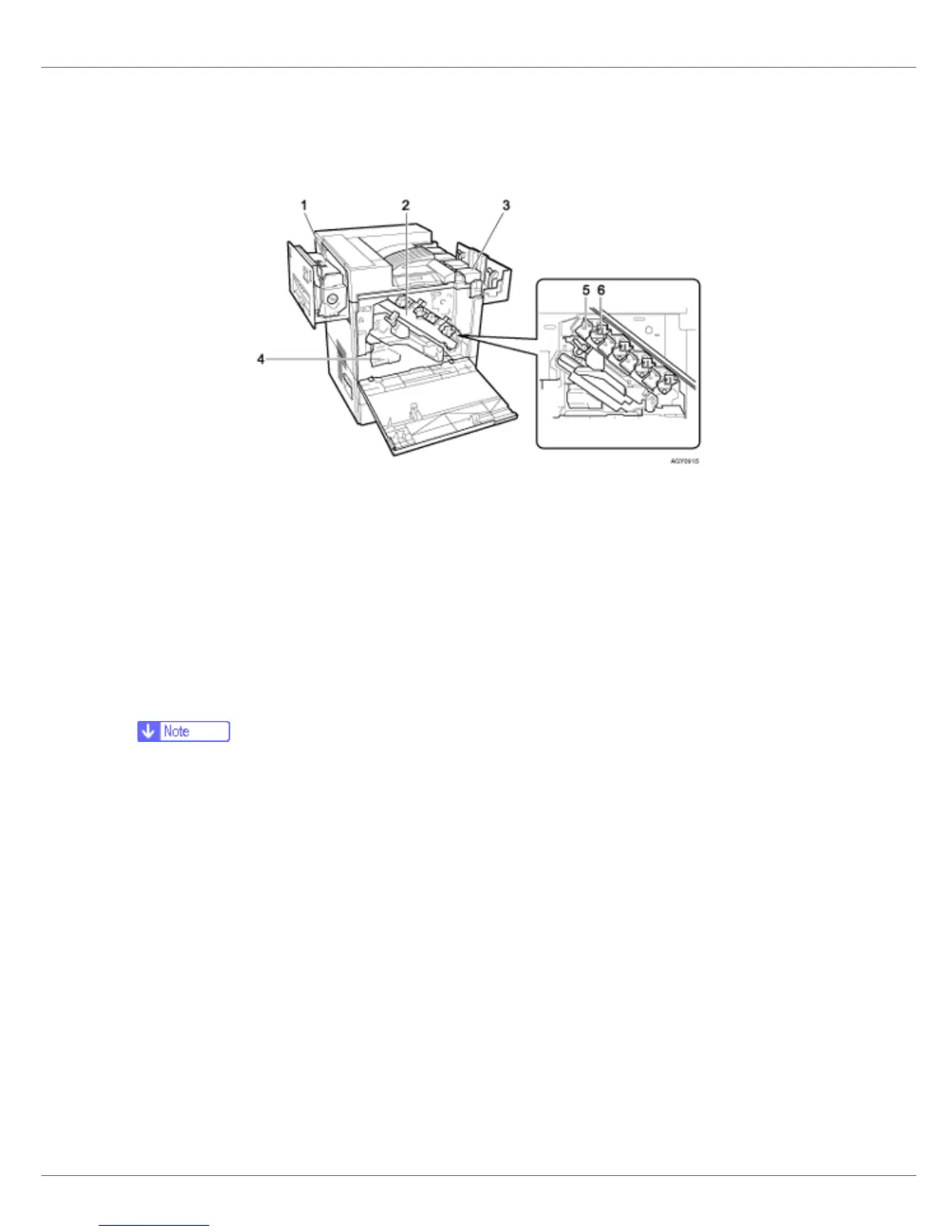

1. Fusing Unit
When “Replace Fusing Unit (C)” appears on the display, replace the fusing unit.
2. Inner cover
Open this when replacing the photoconductor unit or development unit.
3. Toner Cartridge
Loads from the printer rear, in the order of magenta (M), cyan (C), yellow (Y), and black
(K).
When “Add Toner XXX” appears on the display, replace the indicated color of the toner
cartridge.
❒ The color is displayed for XXX.
4. Waste Toner Bottle
Collects toner that is wasted during printing.
When “Replace Waste Toner (Type E)” appears on the display, replace the waste toner
bottle.
5. Photo Conductor Unit
The printer comes with one black and three color (yellow, cyan, and magenta) photocon-
ductor units.
When “Replace Black PCU (Type F)” or “Replace Color PCU (Type A)” appears on the
display, replace the photo conductor unit.
6. Development unit
The printer comes with one black development unit and three color (yellow, cyan, ma-
genta) development units.
When “Replace Black Dev. Unit (Type D)” or “Replace Color Dev. (Type B)” appears on
the display, replace the development unit.
