1.Replacement and Adjustment
100

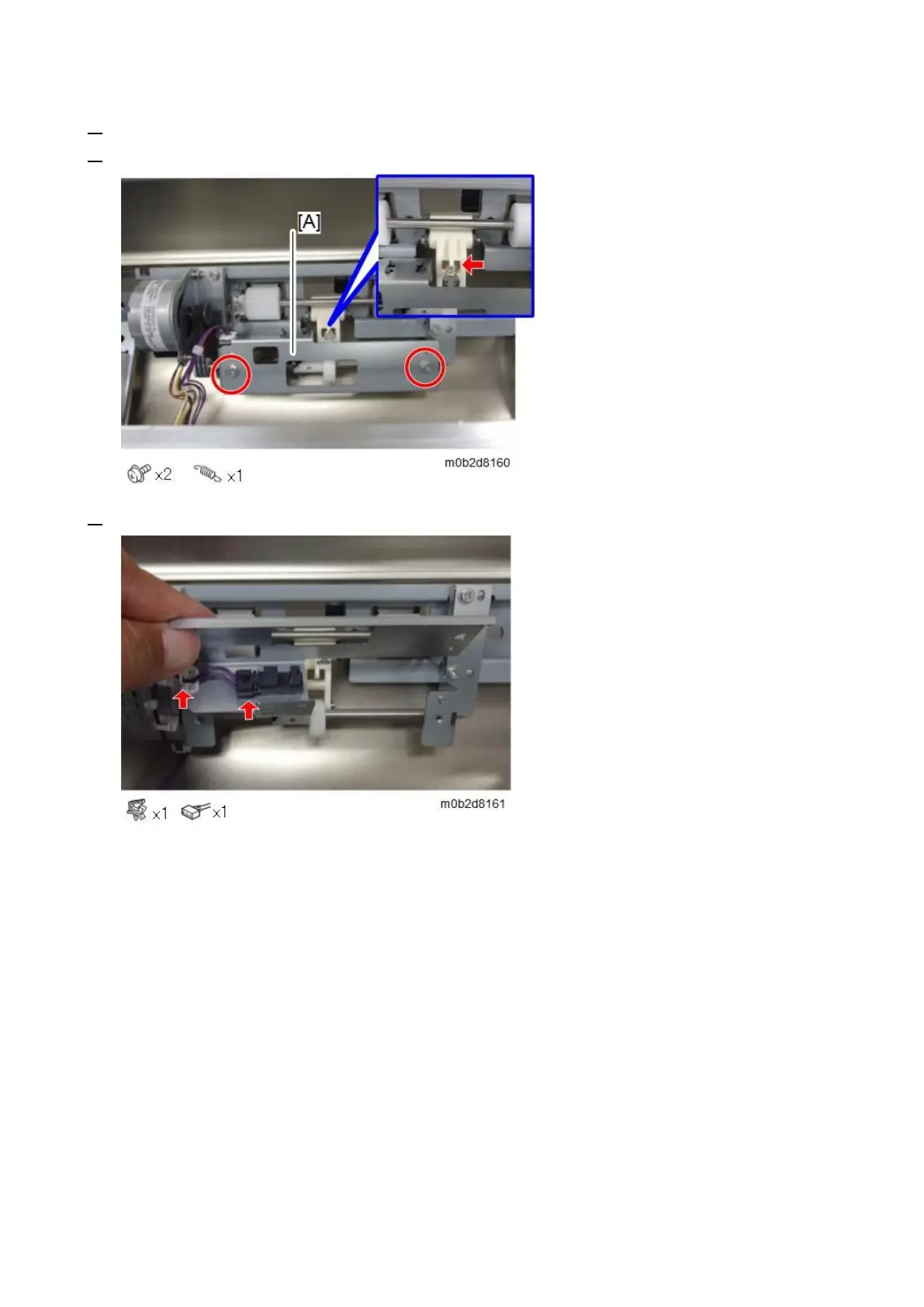

1. Remove the vertical feed unit (Vertical Feed Unit)
2. Remove the spring and the sensor bracket [A].
3. Turn over the sensor bracket, release the edge saddle, and disconnect the connector.
