1.Replacement and Adjustment
39
Float Fan Shutter Solenoid
1. Remove the float/separation/return fan duct (Float/Separation/Return Fan Duct)

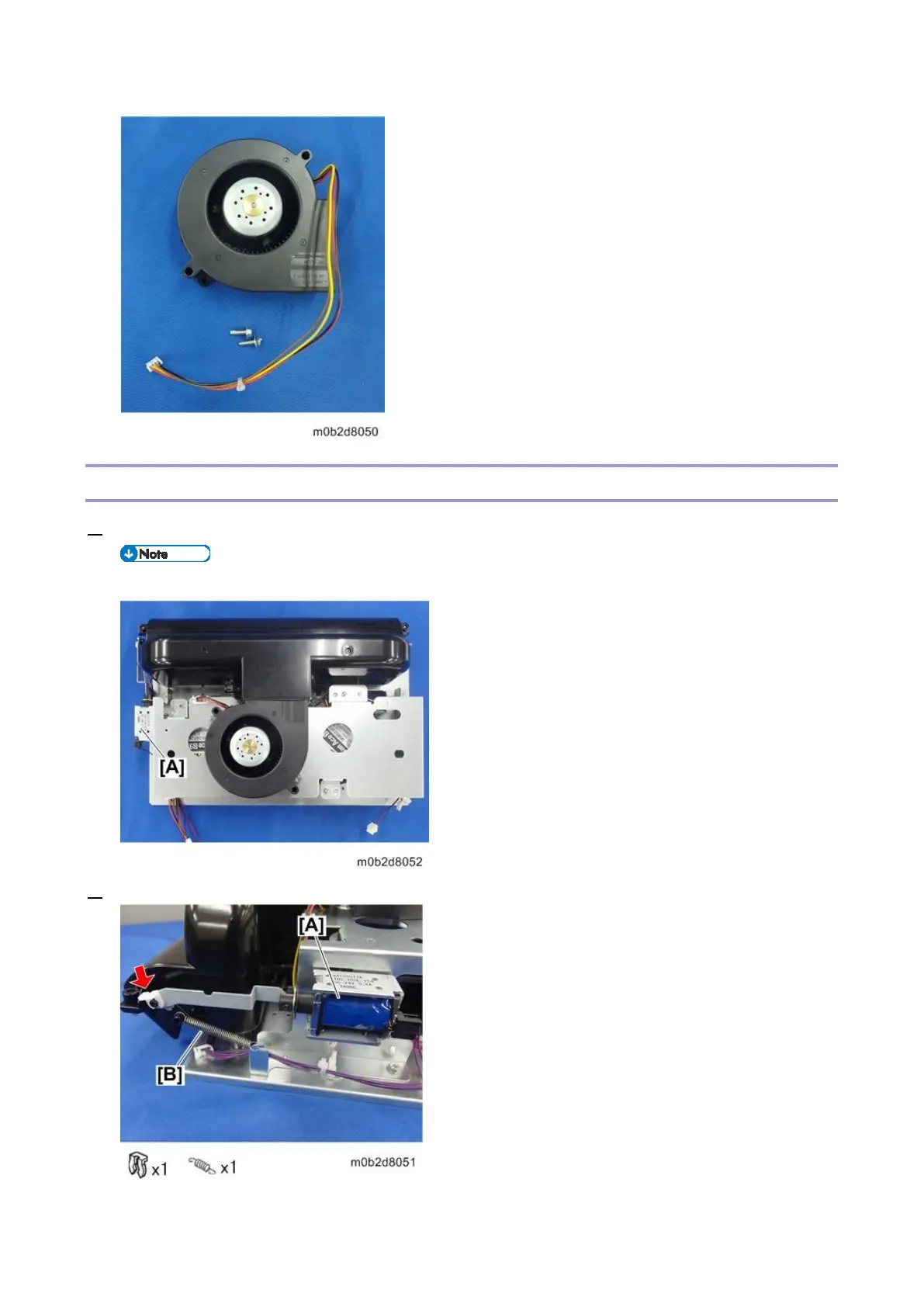

The position of the float fan shutter solenoid [A]
2. Remove the clip (red arrow) of the float fan shutter solenoid [A] and spring [B].
