Ricoh D3EW - Vertical Transport Exit Motor

1.Replacement and Adjustment
83

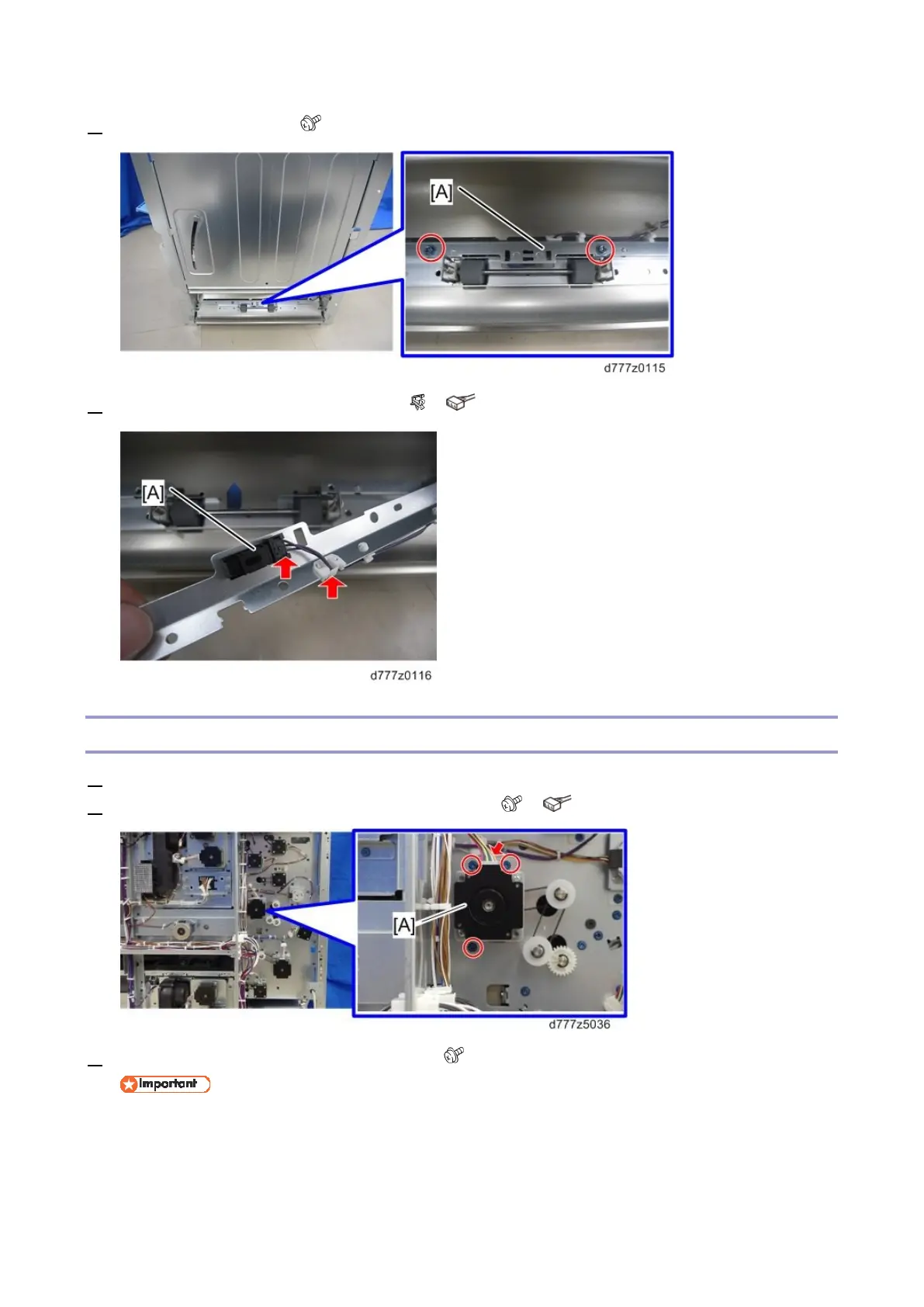

3. Remove the bracket [A] ( x4)
4. Remove the tray 2 transport sensor [A] ( x1, x1)
Vertical Transport Exit Motor
1. Remove the rear right and left covers (Rear Right Cover, Rear Left Cover).
2. Remove the vertical transport exit motor bracket [A] ( x3, x1)
3. Remove the vertical transport exit motor [A] ( x2)
 Do not remove the damper [B] between the motor and the bracket. This damper is factory
installed and cannot be adjusted outside the factory.
