Ricoh D3EW - Tray 2 Vertical Transport Exit Contact Sensor

1.Replacement and Adjustment
99
[B] from the sensor bracket.
Tray 2 Vertical Transport Exit Contact Sensor

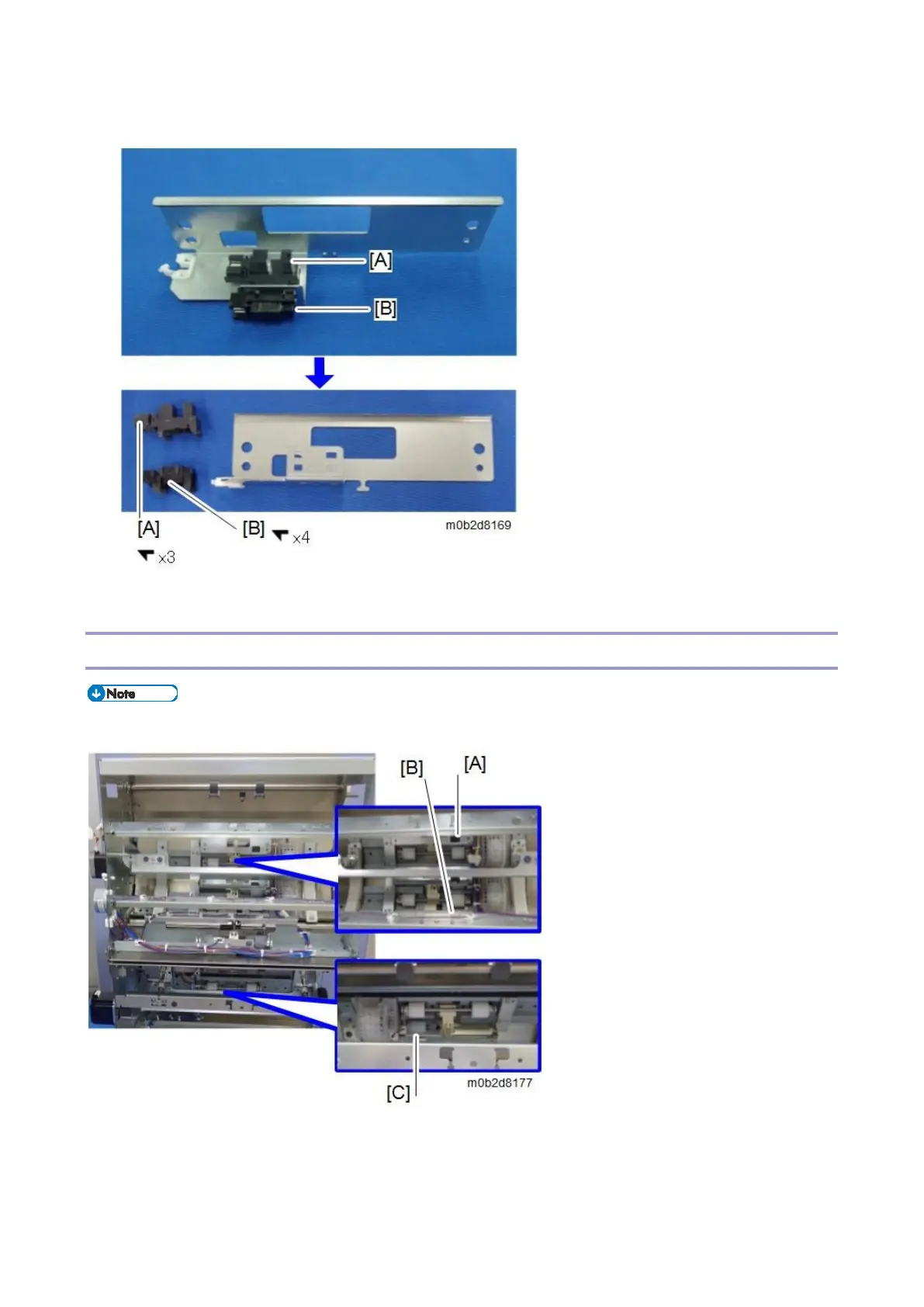

The position of the contact sensors on the left side of the vertical transport unit is shown below.
[A]: Tray 1 Vertical Transport Contact Sensor
[B]: Tray 1 Vertical Transport Exit Contact Sensor
[C]: Tray 2 Vertical Transport Exit Contact Sensor
