1.Replacement and Adjustment
4
1. Replacement and Adjustment
Do not pull out all the trays while RT5120 is not docked to the main machine. Or the unit may topple.
Exterior Covers

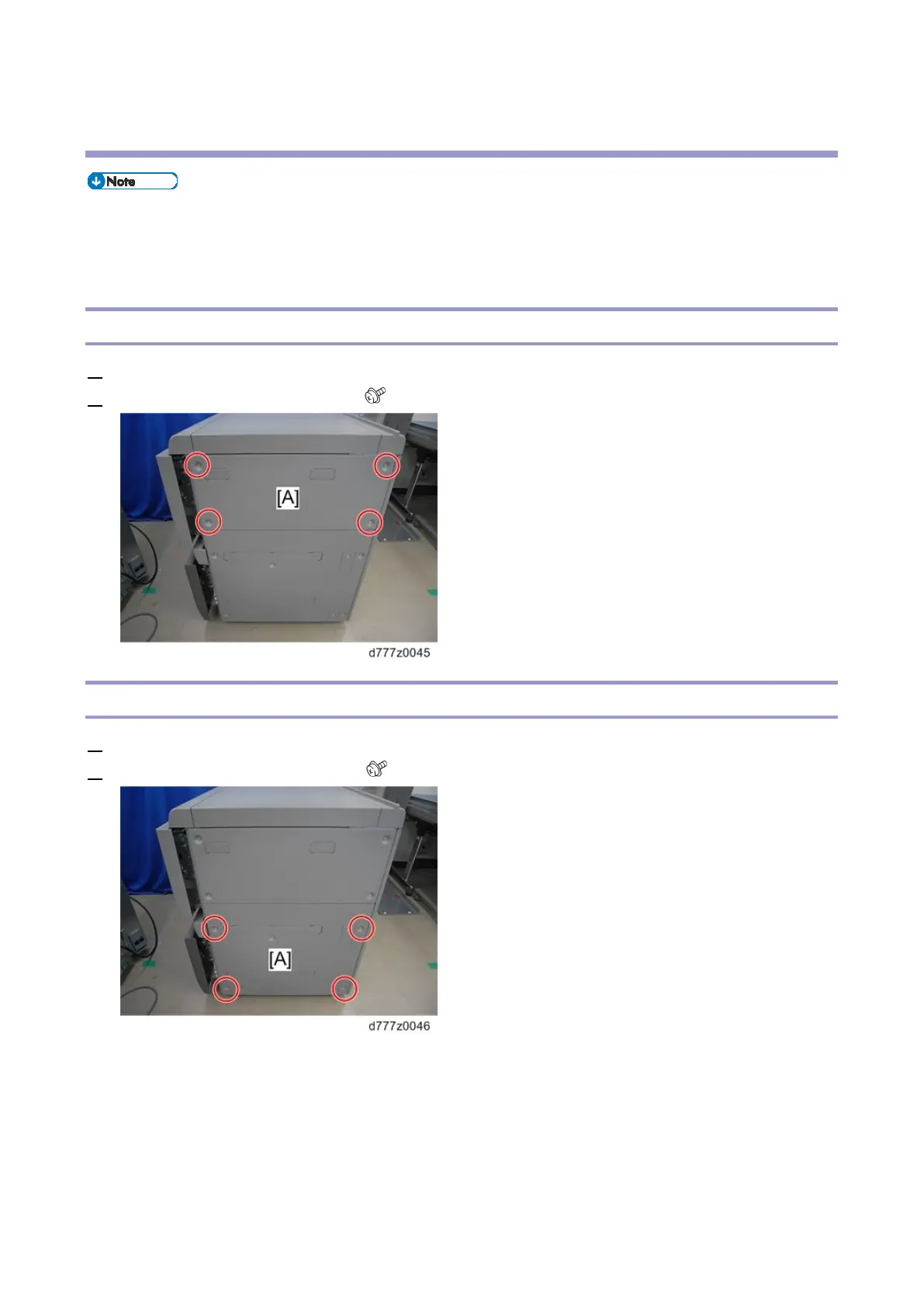

Right Upper Cover
1. Open paper tray 1 slightly.
2. Remove the right upper cover [A]( x4)
Right Lower Cover
1. Open paper trays 1 and 2 slightly.
2. Remove the right lower cover [A] ( x5)
