Ricoh D3EW - Vertical Transport Entrance Contact Motor

1.Replacement and Adjustment
89

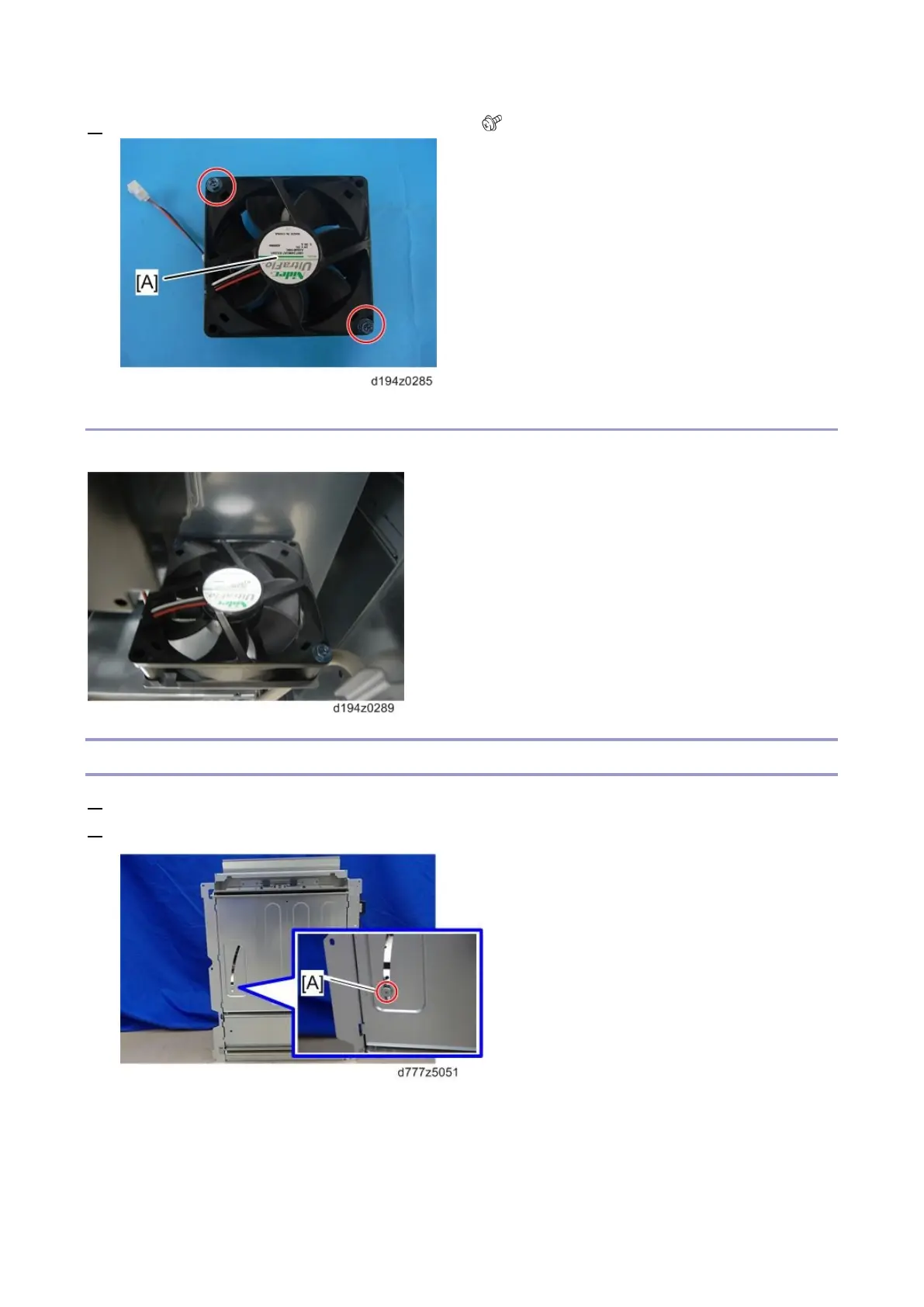

3. Remove the vertical transport unit cooling fan [A] ( x2)
Vertical Transport Unit Cooling Fan Re-installation
Install the cooling fan so that its label faces up
Vertical Transport Entrance Contact Motor
1. Remove the vertical feed unit (Vertical Feed Unit)
2. Remove the shoulder screw [A] on the right side of the vertical feed unit.
