Ricoh D3EW - Tray 1 Vertical Transport Motor 2

1.Replacement and Adjustment
77

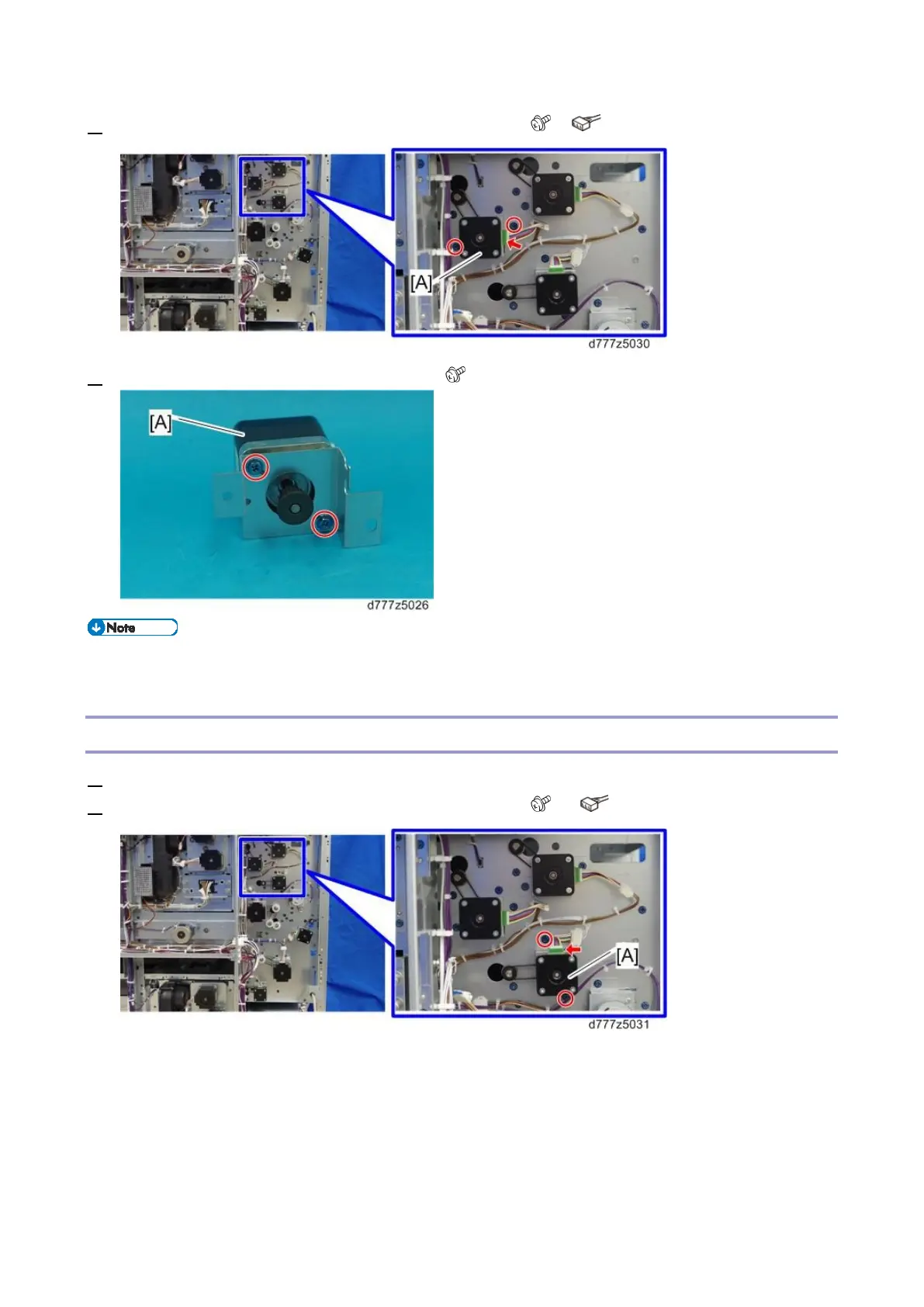

2. Remove the tray 1 vertical transport motor 1 bracket [A] ( x2, x1)
3. Remove tray 1 vertical transport motor 1 [A] ( x2)
 When installing the motor, refer to re-installation for bypass transport motor 2 (Bypass
Transport Motor 2).
Tray 1 Vertical Transport Motor 2
1. Remove the rear right and left covers (Rear Right Cover, Rear Left Cover).
2. Remove the tray 1 vertical transport motor 2 bracket [A] ( x2, x1)
