Ricoh D3EW - Tray 2 Vertical Transport Motor 2

1.Replacement and Adjustment
80

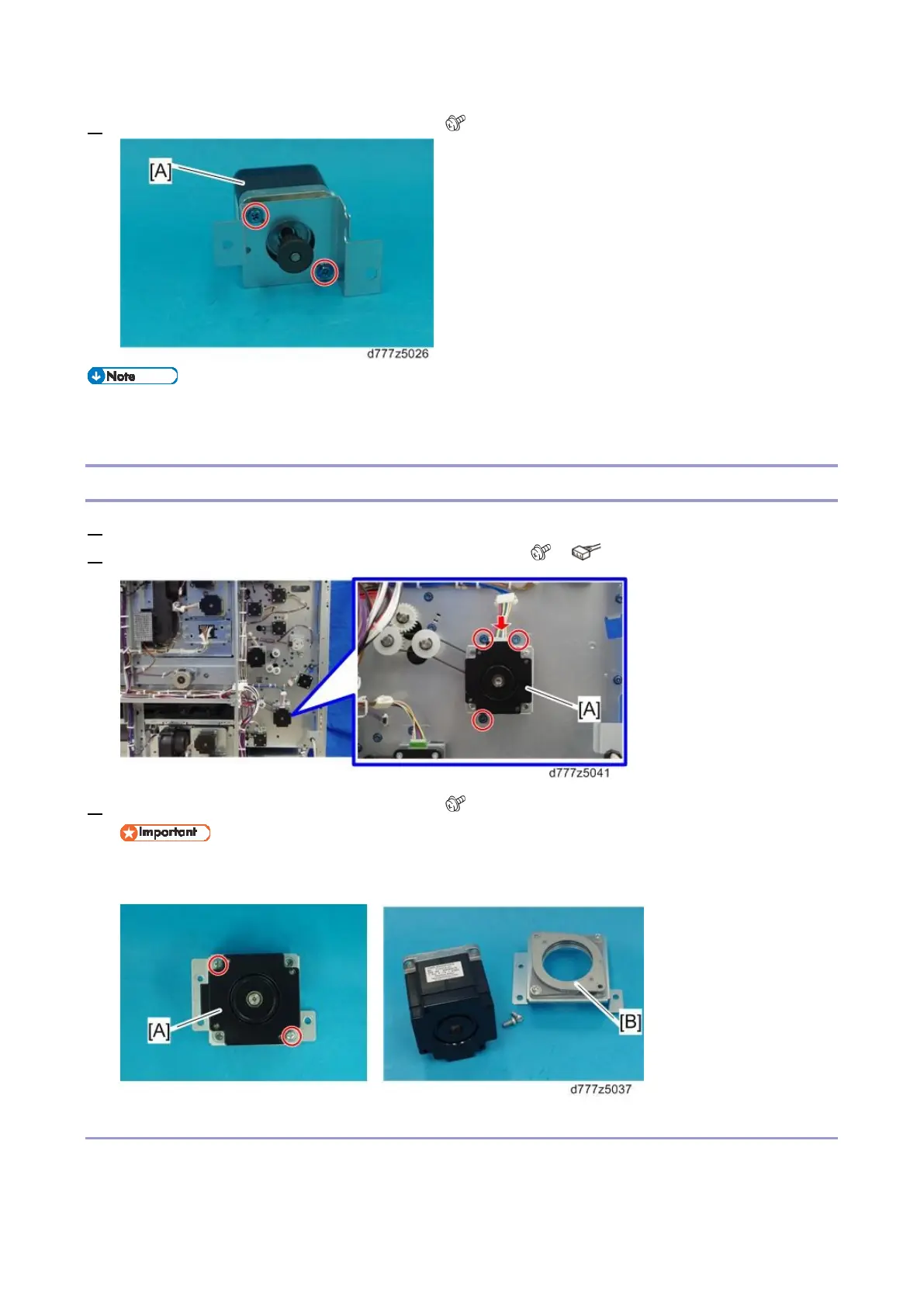

3. Remove tray 2 vertical transport motor 1 [A] ( x2)
 When installing the motor, refer to re-installation for bypass transport motor 2 (Bypass
Transport Motor 2).
Tray 2 Vertical Transport Motor 2
1. Remove the rear right and left covers (Rear Right Cover, Rear Left Cover).
2. Remove the tray 2 vertical transport motor 2 bracket [A] ( x3, x1)
3. Remove tray 2 vertical transport motor 2 [A] ( x2)
 Do not remove the damper [B] between the motor and the bracket. This damper is factory
installed and cannot be adjusted outside the factory.
Re-installation
1. When attaching the bracket to the motor, install it so that the connector openings [A] face the two
