1.Replacement and Adjustment
38

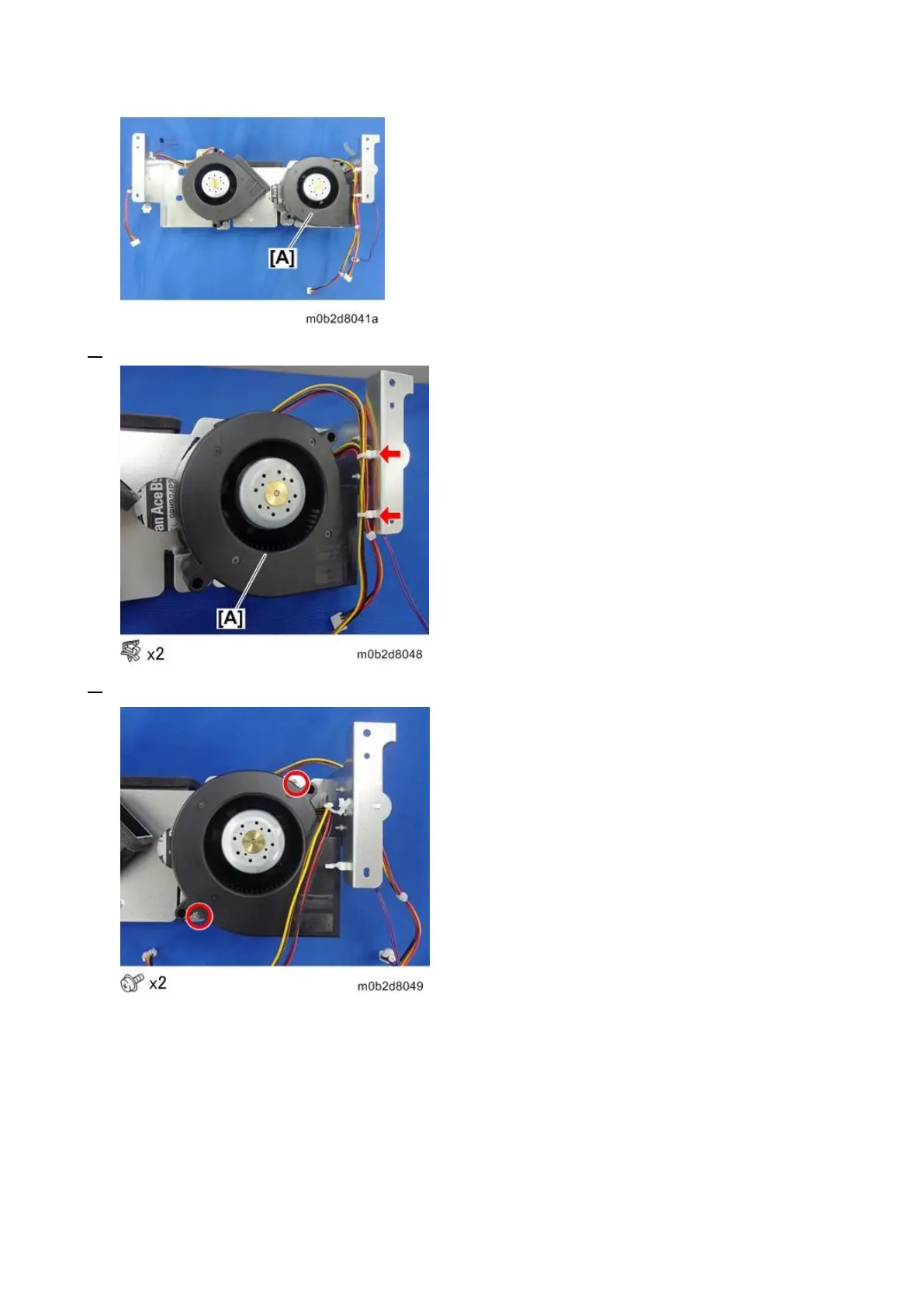

3. Release the clamp and the harness of the return fan [A].
4. Remove the screws and the return fan.
