1.Replacement and Adjustment
113

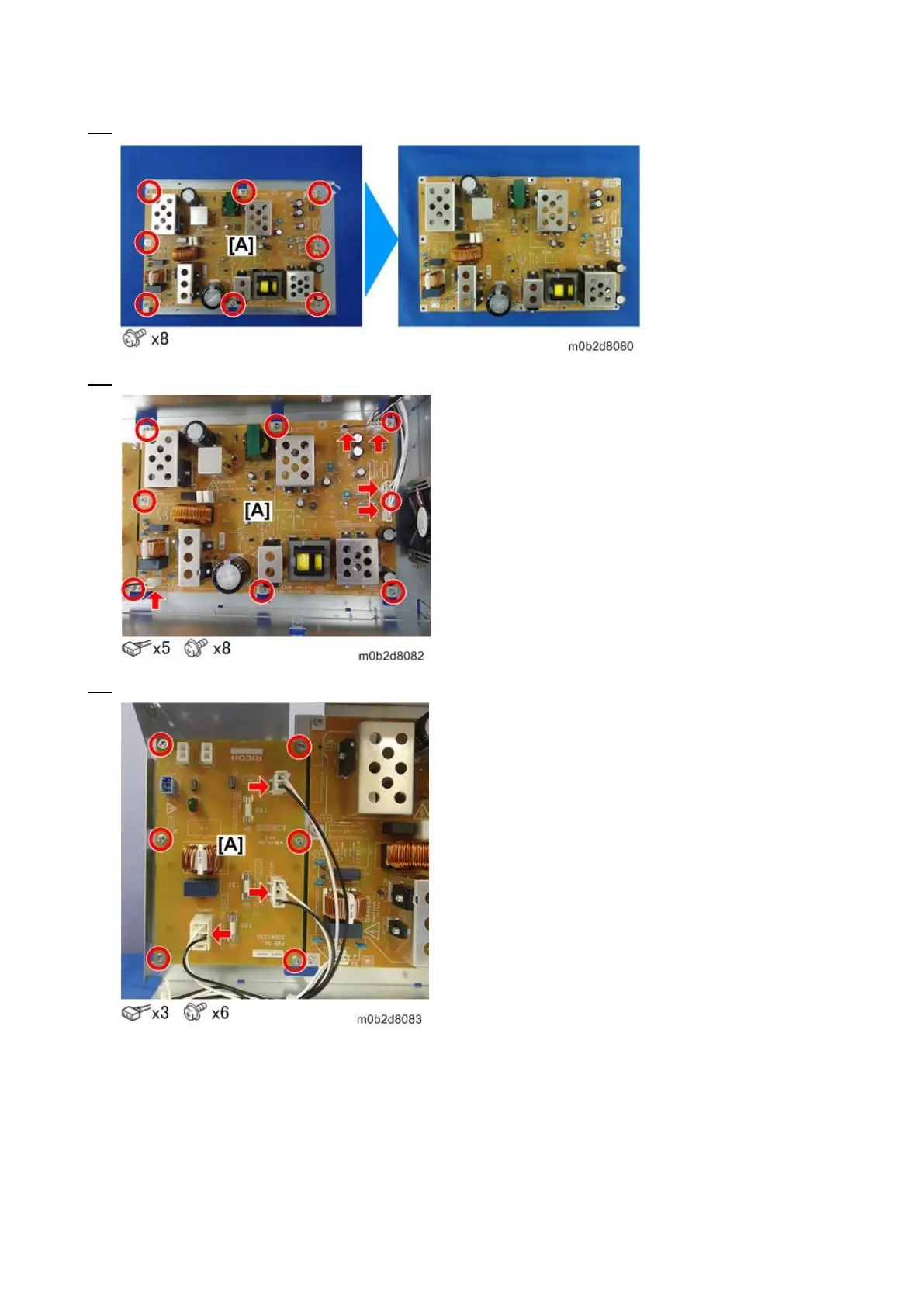

10. Detach the board from the bracket.
11. Pull out the connectors and then remove the screws on PSU 3 [A], to detach PSU 3.
12. Remove the AC drive board.
