1.Replacement and Adjustment
22

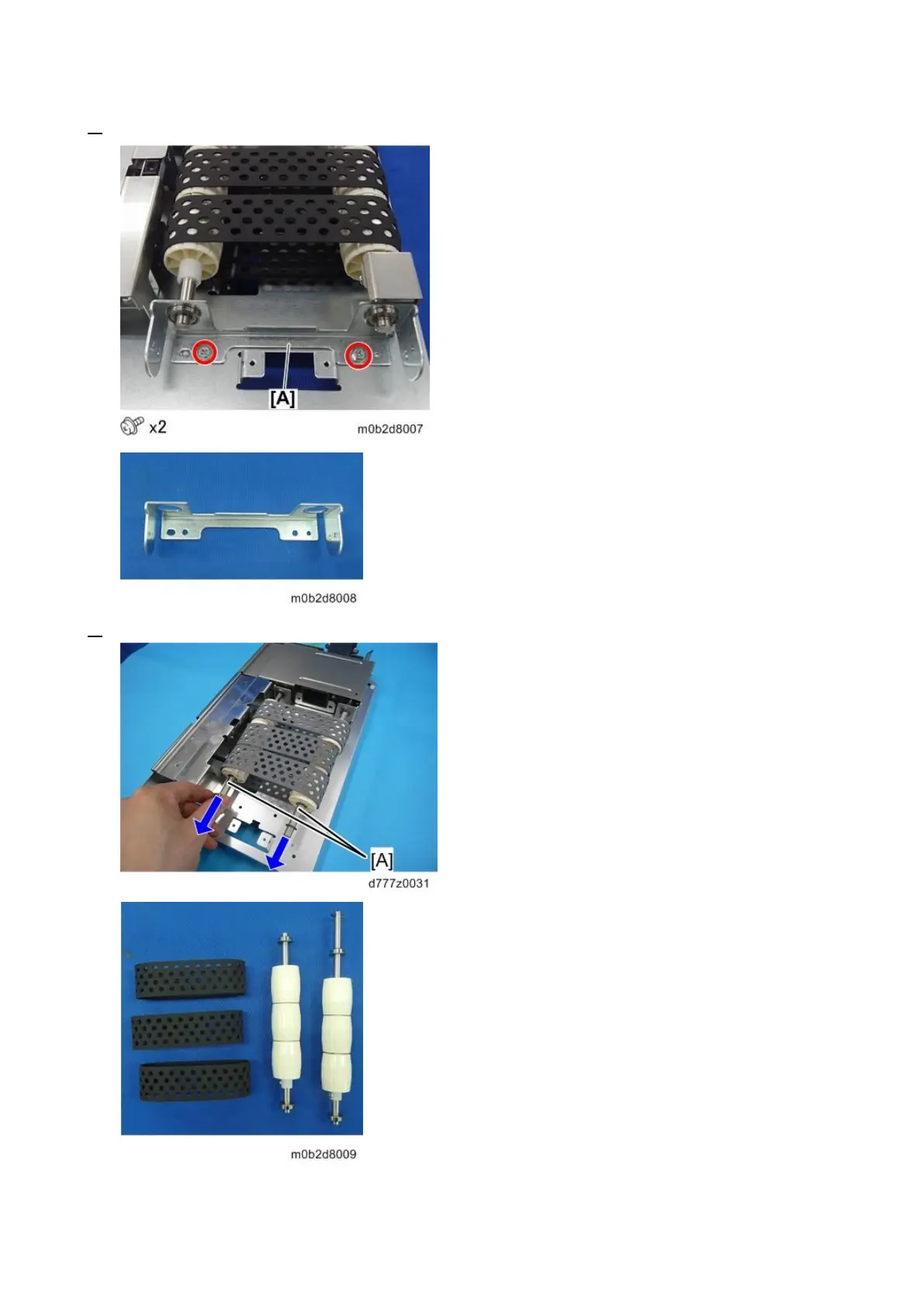

4. Remove the bracket [A].
5. Remove the belt shaft [A] and the paper feed belt.
