Ricoh D3EW - Page 35

1.Replacement and Adjustment
31

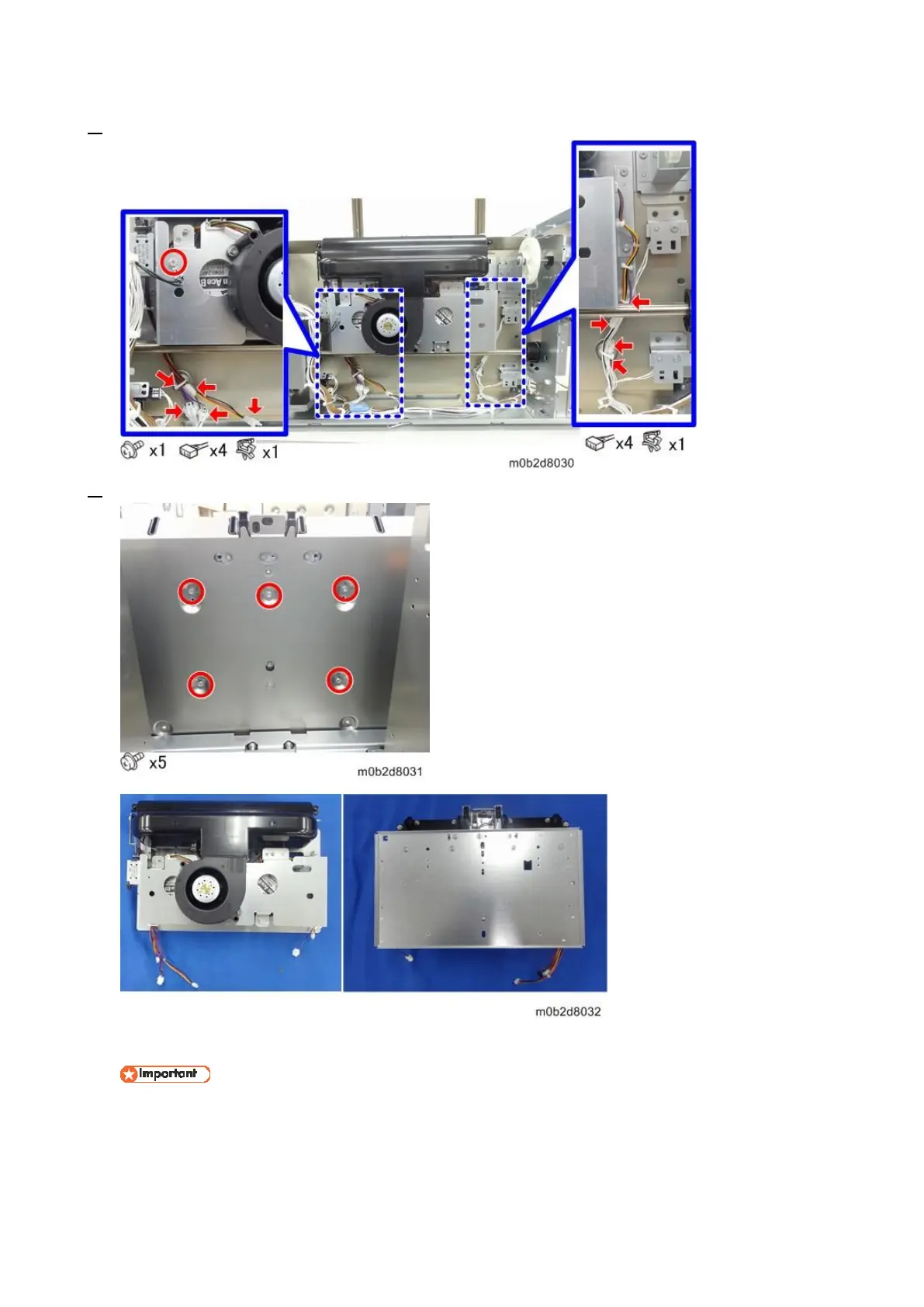

7. Release the clamps and disconnect the connectors connected to the fan duct.
8. Remove the screws on the inside of the paper tray and then remove the fan duct.
Do not remove the screws that fix the position of the float/separation/return fan duct. The position
of the float/separation/return fan duct is fixed in the factory and cannot be adjusted outside the
factory.
