Ricoh D3EW - Power Supply and Control Systems

1.Replacement and Adjustment
56

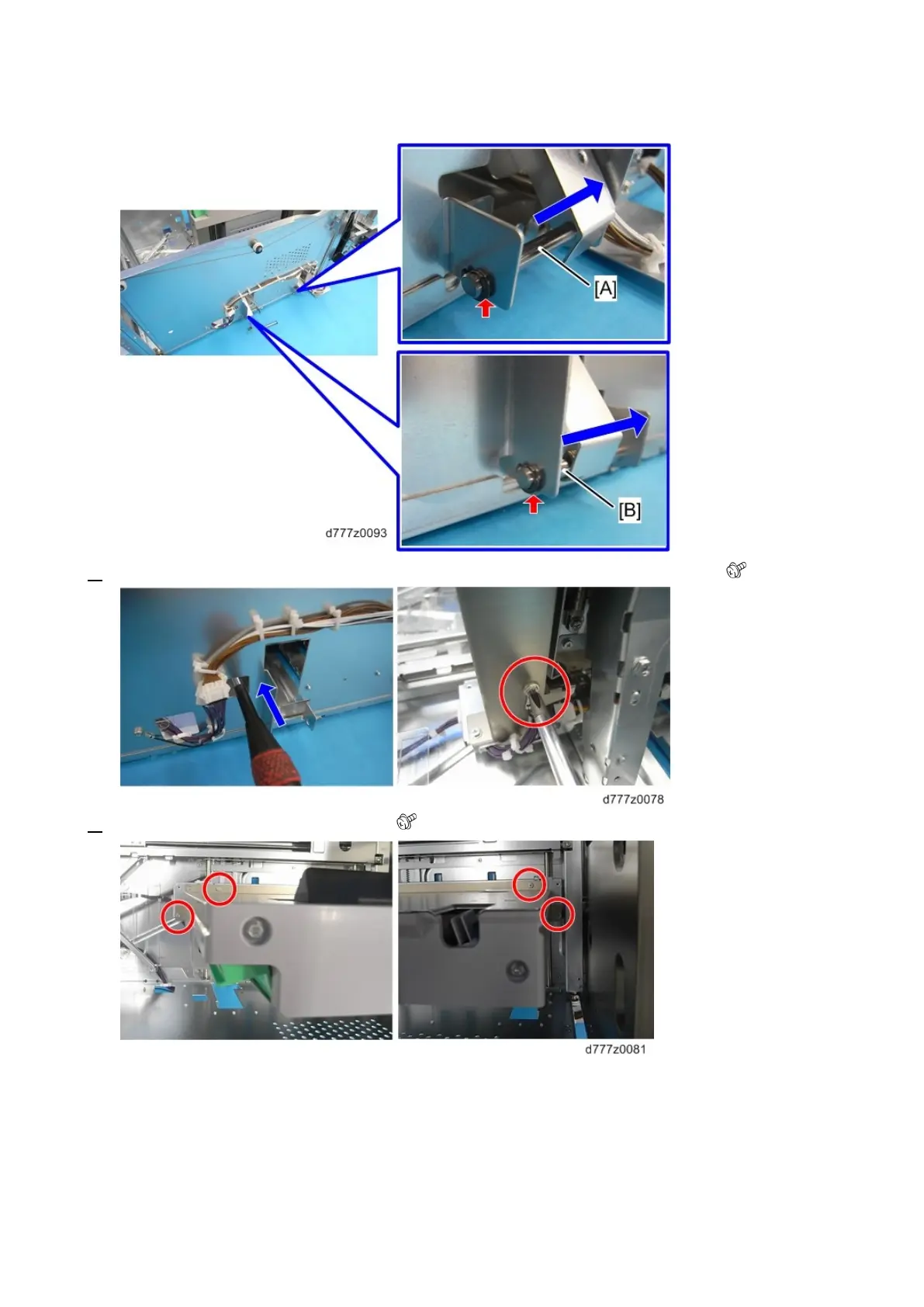

of the arrow. The [B] shaft has a spring.
3. Insert a screwdriver in the opening in the frame and remove the ground connection ( x1).
4. Remove the screws in the side fence ( x4).
