1.Replacement and Adjustment
61

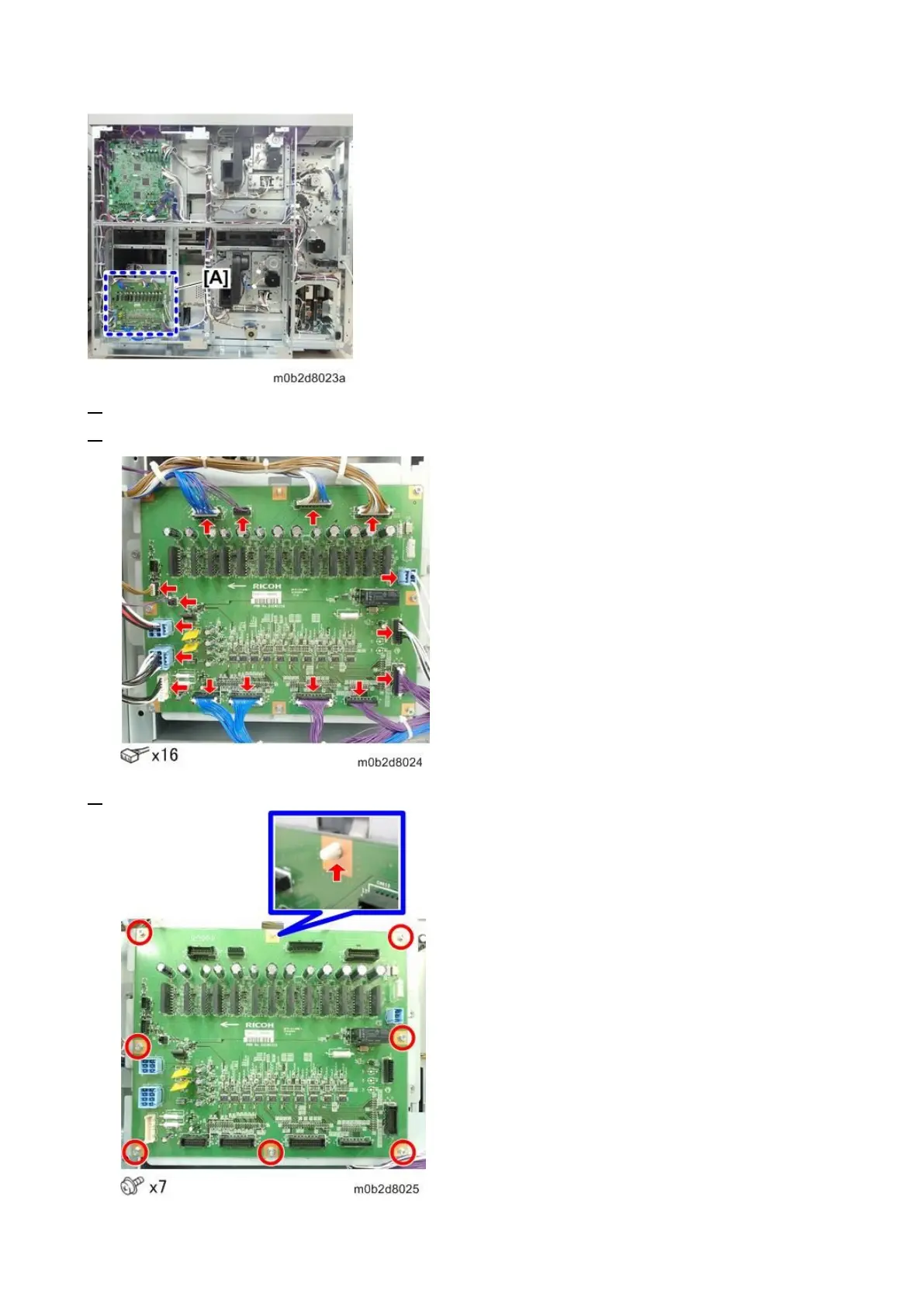

1. Remove the rear right and left covers (Rear Right Cover,Rear Left Cover).
2. Disconnect the connectors of the motor control board.
3. Remove the screws to detach the motor control board.
