Ricoh D3EW - Page 67

1.Replacement and Adjustment
63

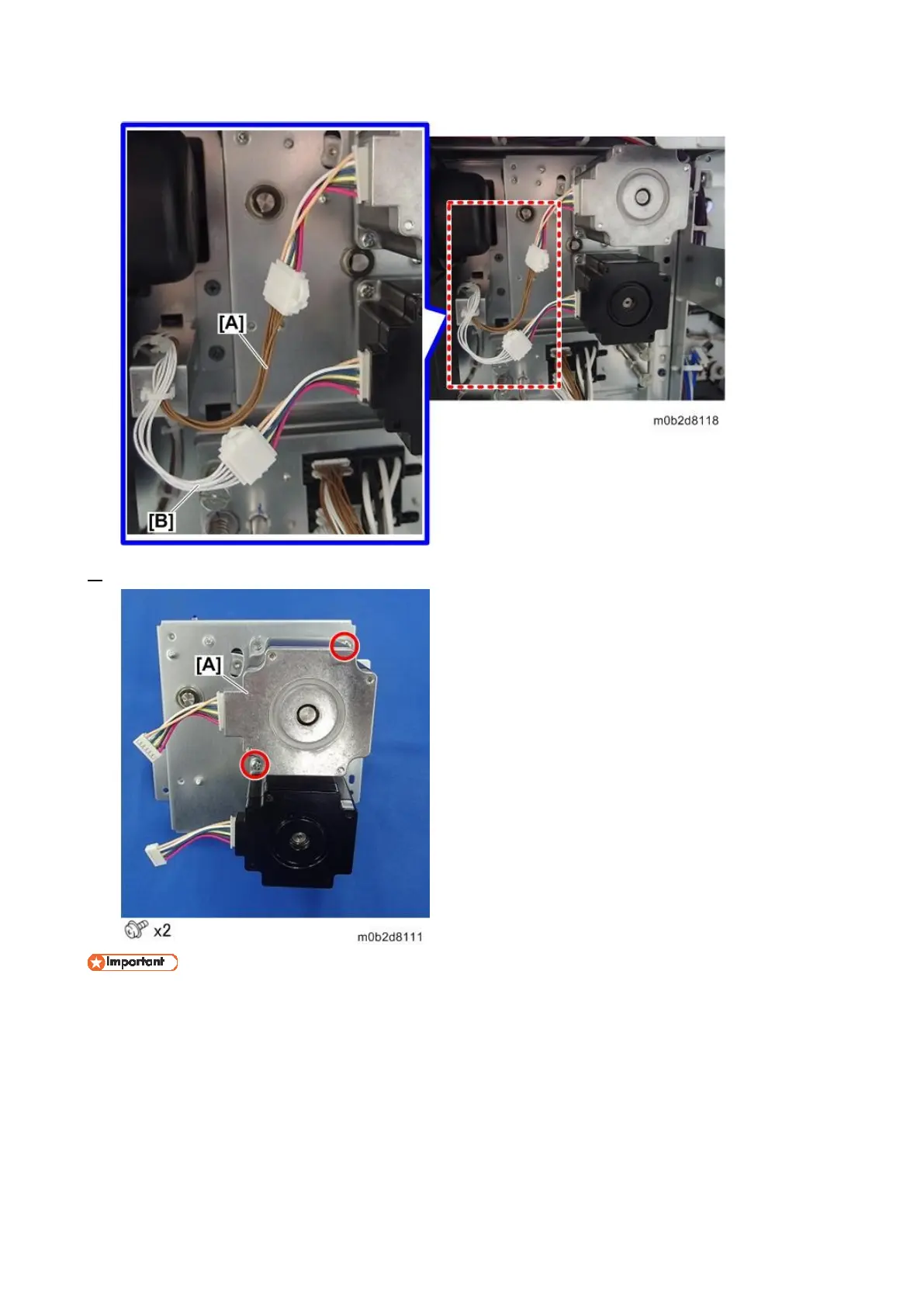

3. Remove the tray 1 pickup belt motor [A].
Do not remove the damper [A] between the motor and the bracket. This damper is factory installed and
cannot be adjusted outside the factory.
