1.Replacement and Adjustment
71

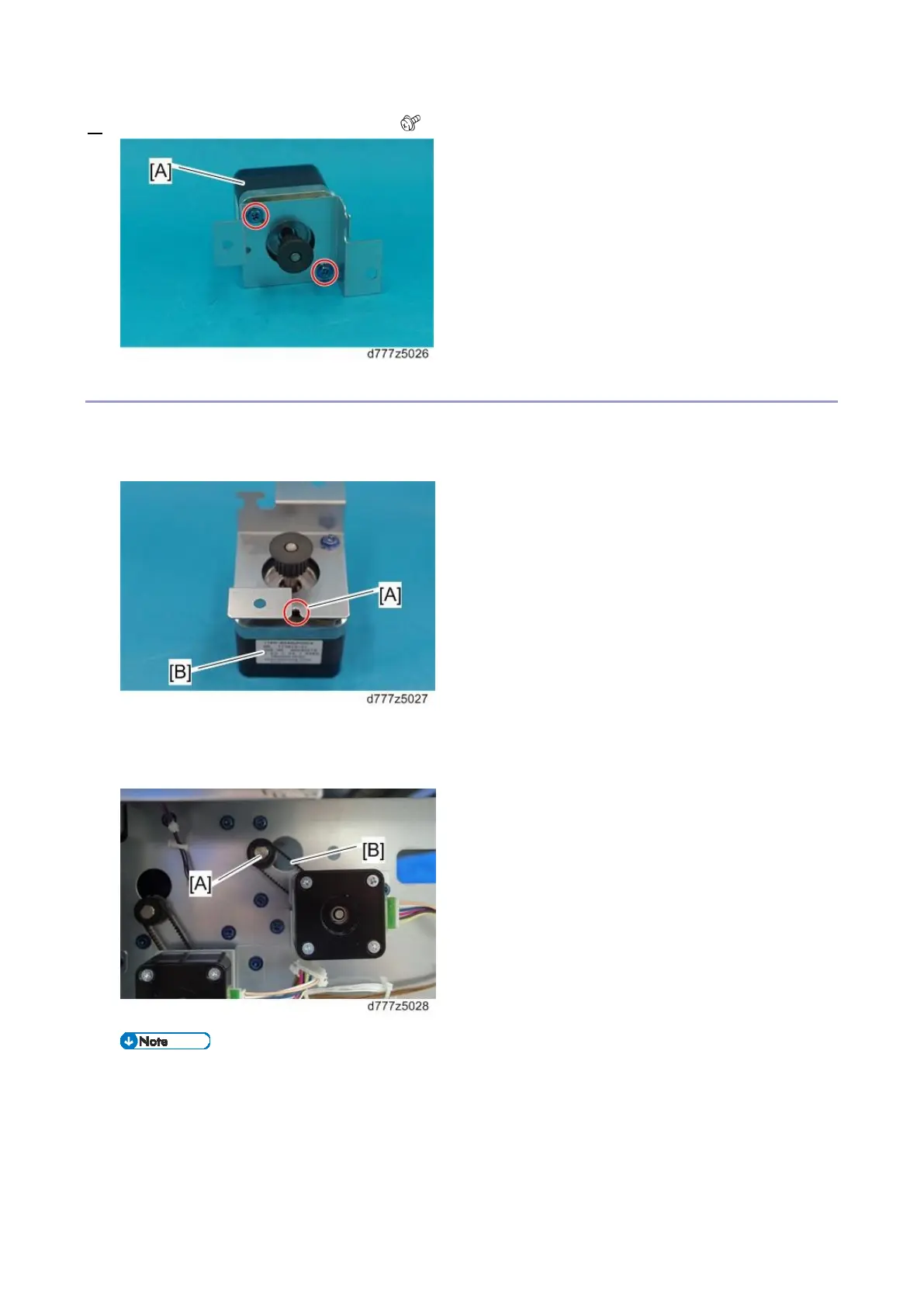

3. Remove bypass transport motor 2 [A] ( x2)
Re-installation
1. When attaching the bracket to the motor, position the bracket so that the opening in the bracket [A]
faces the label [B].
2. When attaching the motor bracket, turn the roller [A] to make sure that the timing belt [B] is
correctly installed.
If the timing belt is not correctly installed on the motor gear [A], the timing belt [B] may be
too loose.
