1.Replacement and Adjustment
75

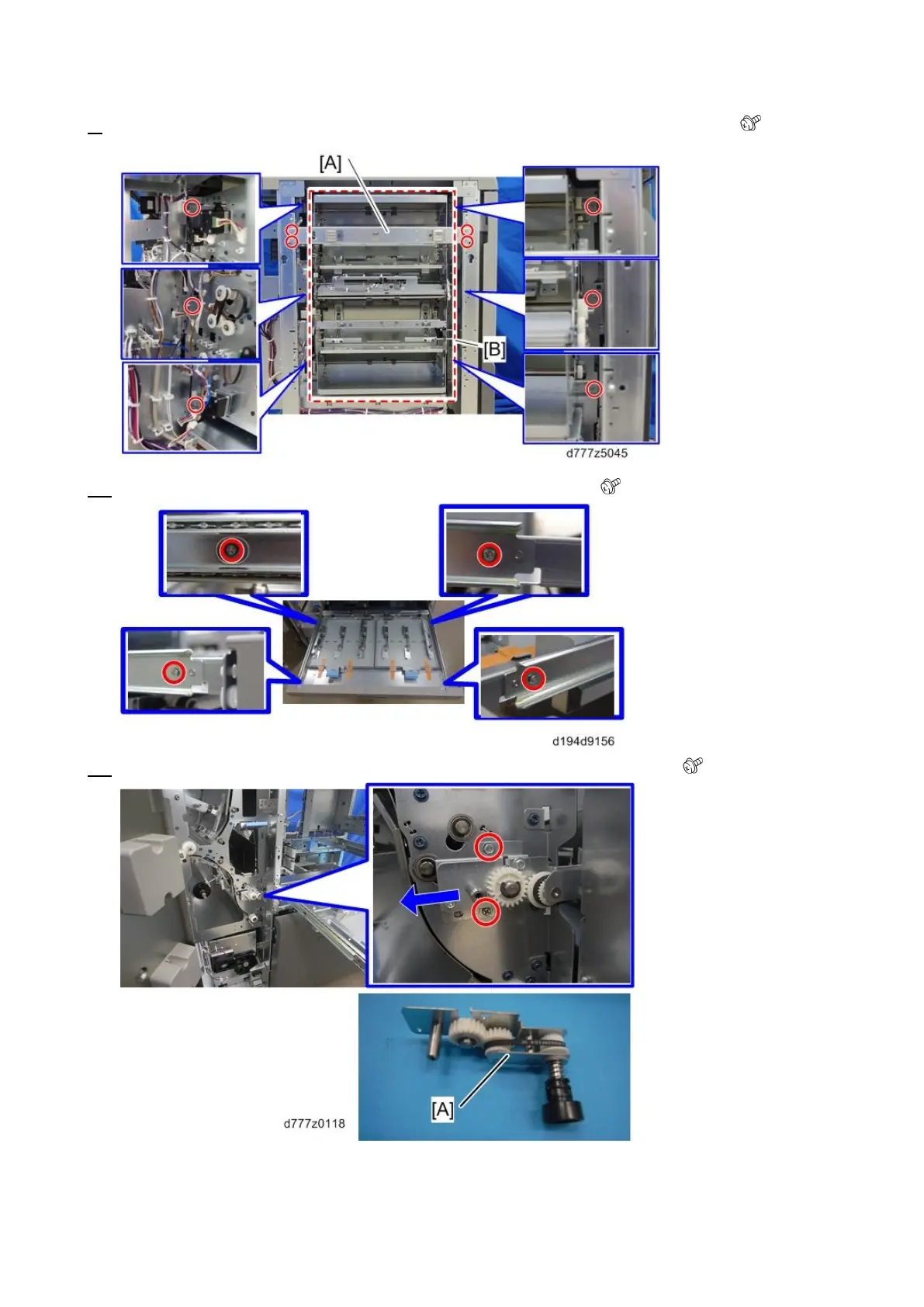

9. Remove the six screws that secure the vertical feed unit [B] to the vacuum feed LCIT ( x6).
10. If linked to the vacuum feed LCIT, remove the horizontal feed unit ( x4).
11. If linked to the vacuum feed LCIT, remove the paper jam processing lever [A] ( x2).
