1.Replacement and Adjustment
92
[B]: Tray 1 Vertical Transport Exit Contact Motor
[C]: Tray 2 Vertical Transport Exit Contact Motor

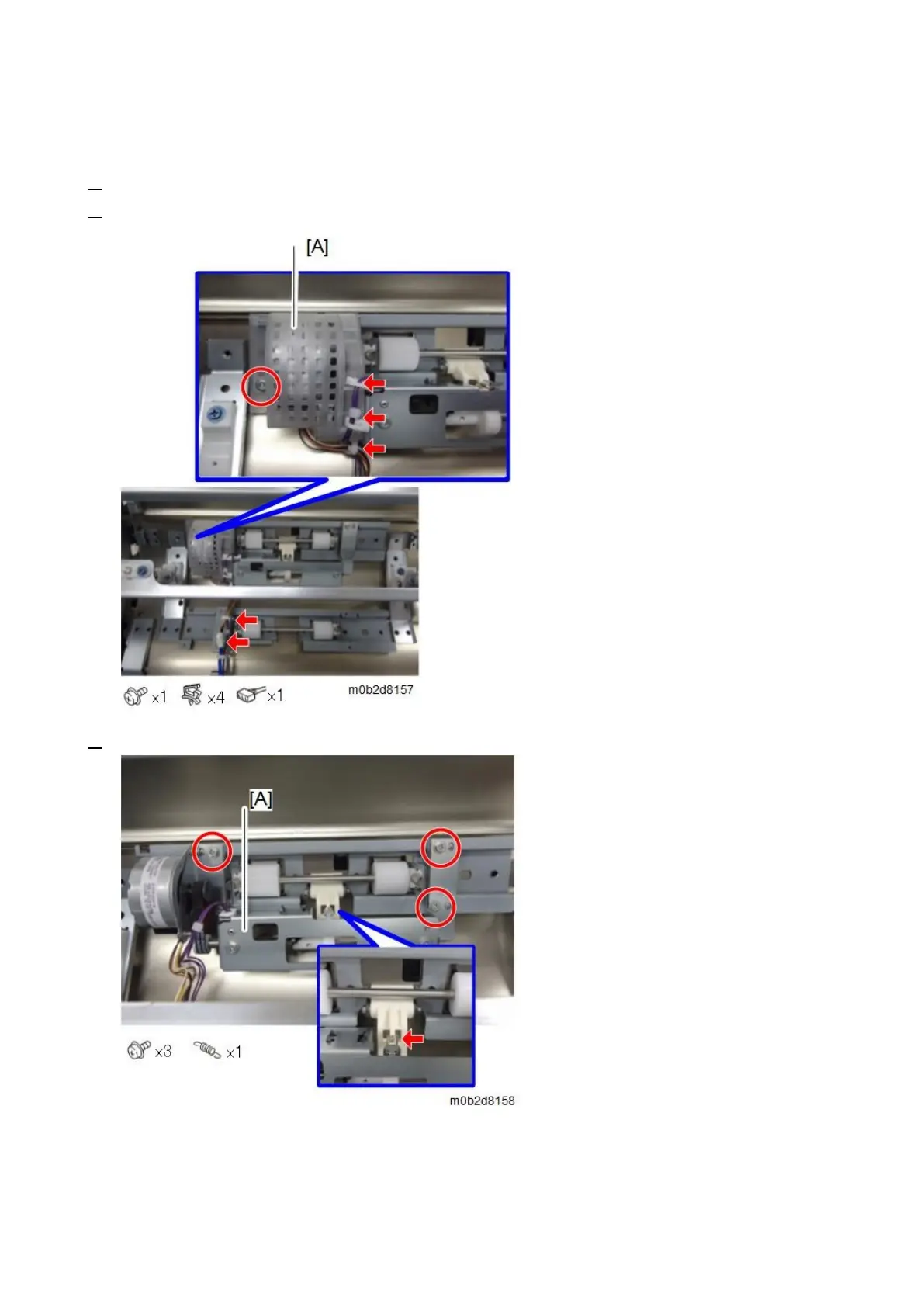

1. Remove the vertical feed unit (Vertical Feed Unit)
2. Release the clamps and connector, and remove the motor cover [A].
3. Remove the spring and the motor bracket [A].
