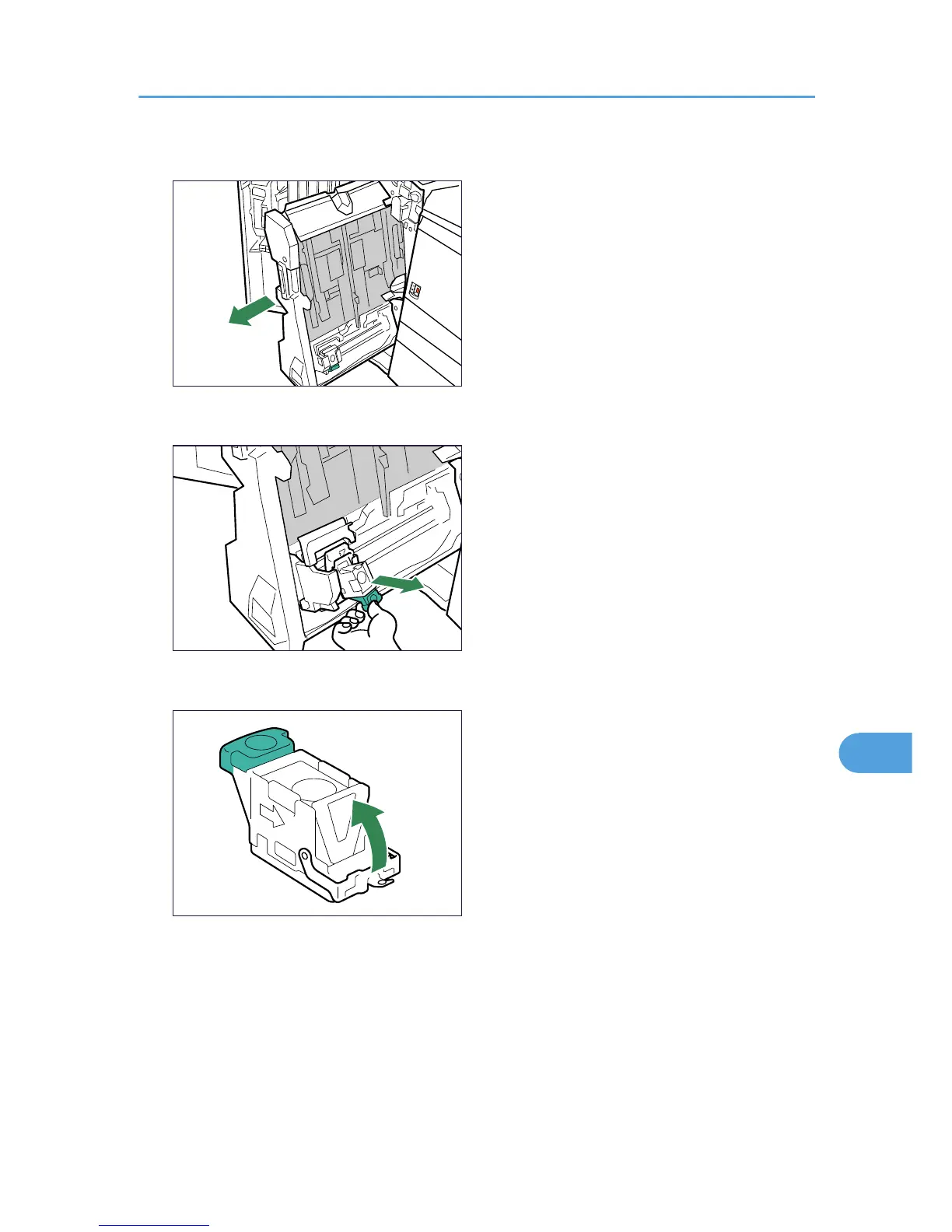

2. Holding the lever, pull out the staple unit.

BEK084S

3. Hold and lift the lever on the cartridge and pull the cartridge gently out of the staple unit.

BEK085S

4. Raise the face plate of the cartridge.

BEK086S

Removing Jammed Staples

171
