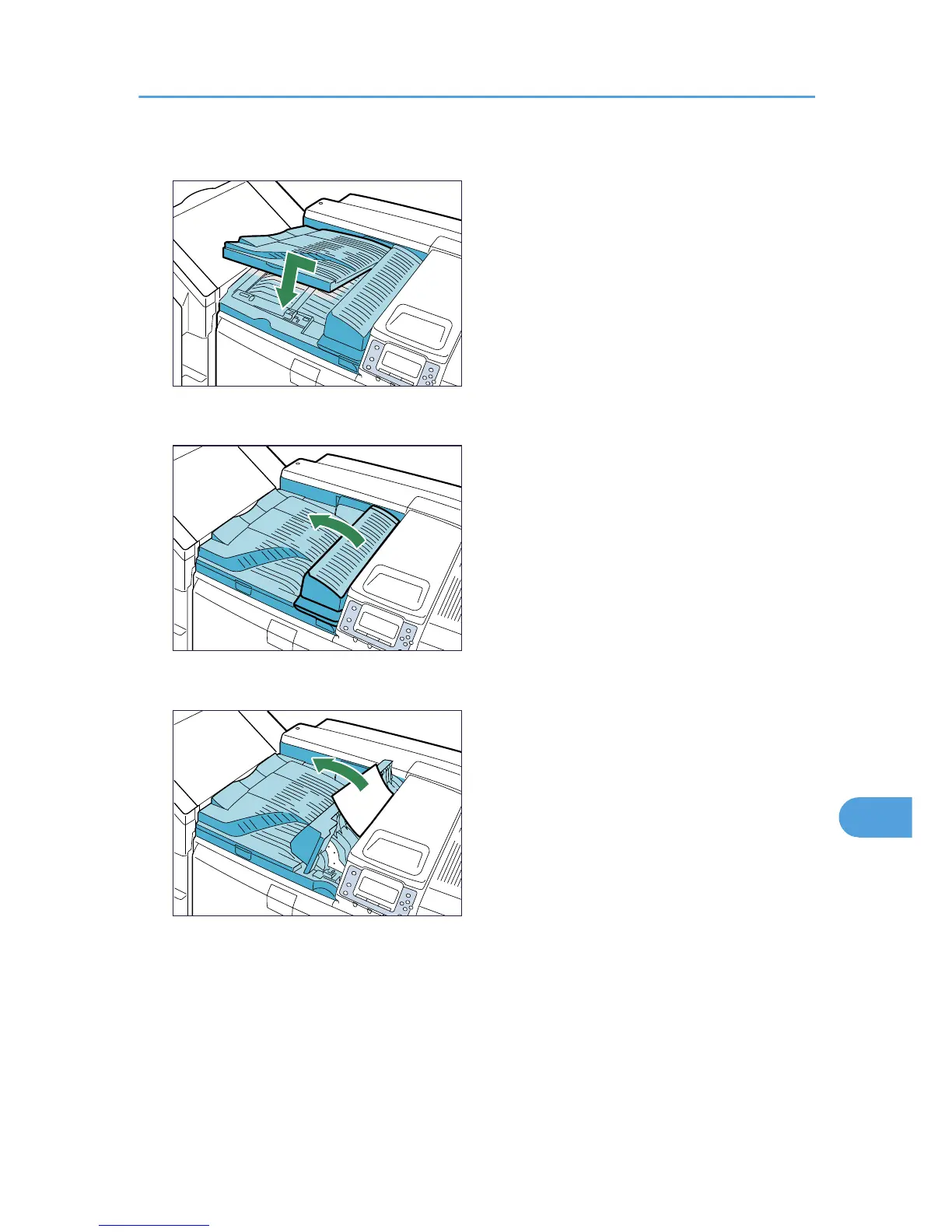

4. Close the left cover of the bridge unit.

BEK047S

5. If the paper could not be removed, open the right cover of the bridge unit.

BEK048S

6. Remove the paper.

BEK042S

7. Close the right cover of the bridge unit.

8. Carefully close the right cover.

Paper Misfeed Message (D)

183
