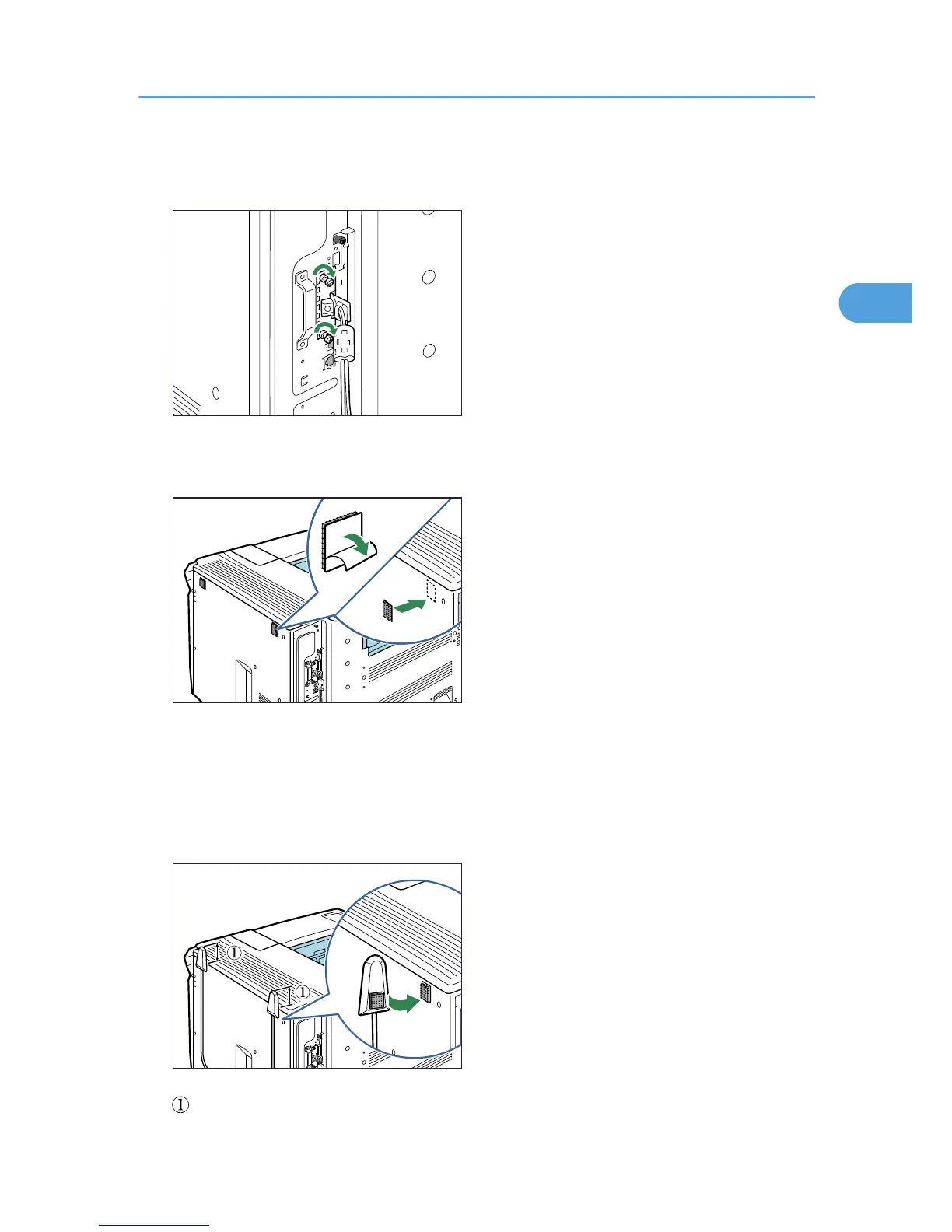

Confirm that the interface board is firmly connected to the controller board.
5. Tighten the two screws to secure the interface board.
BEK168S
6. Remove protective paper from the hook-and-loop fasteners, and then place them as far
away from each other as possible on the upper side of the printer rear.
BEK169S
Make sure that the hook-and-loop fasteners are not placed over any screw holes or seams on the
printer body.
7. Remove protective paper from antennas, and then attach the antennas upright to the hook-
and-loop fasteners. Attach the antenna coming from a black ferrite core on the right side of
the printer rear.
BEK170S
: The antenna tops must project at least 4 cm (1.6inches) above the printer body.
Installing the Interface Units
41
