Adjustment Method
1. From the supplied CD, print the file of the format matching the size of the paper requiring
image position adjustment. Continuously print the format on both sides of 10 sheets.
Use the 6th sheet among the printed copies for adjustment.
2. Through visual inspection of the 4th, 5th, and 6th sheets, check that misregistrations on
Side 1 and 2 are almost the same.
If not, adjust the misregistrations according to the usual method.
3. In [Advanced Settings] for the registered custom paper preset, select 1101: [Image
Position], and then adjust the following settings to match the image position on Side 1.
[Across Feed] of [Image Position: Side 2]
[With Feed] of [Image Position: Side 2]
[Across Feed] of [Image Magnification: Side 2]
[With Feed] of [Image Magnification: Side 2]
Adjusting the image position in the vertical and horizontal directions
<Across feed direction>

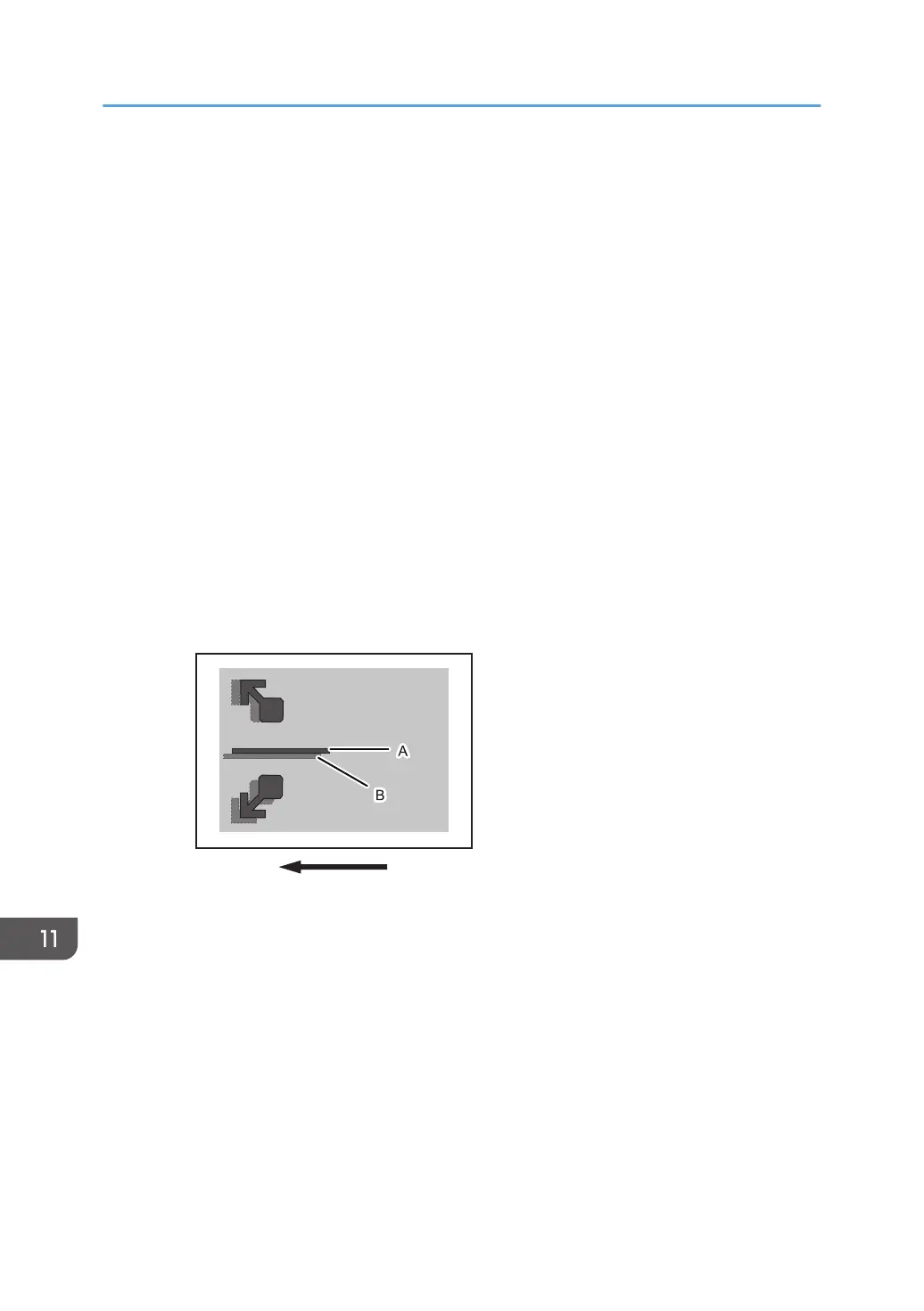

Adjusting the center line (A) on Side 2 to match the center line (B) on Side 1
In [Advanced Settings] for the custom paper you are using, select 1101: [Image Position] and
adjust the value in [Across Feed] of [Image Position: Side 2]
Press [+] to shift the image to the top.
Press [−] to shift the image to the bottom.
