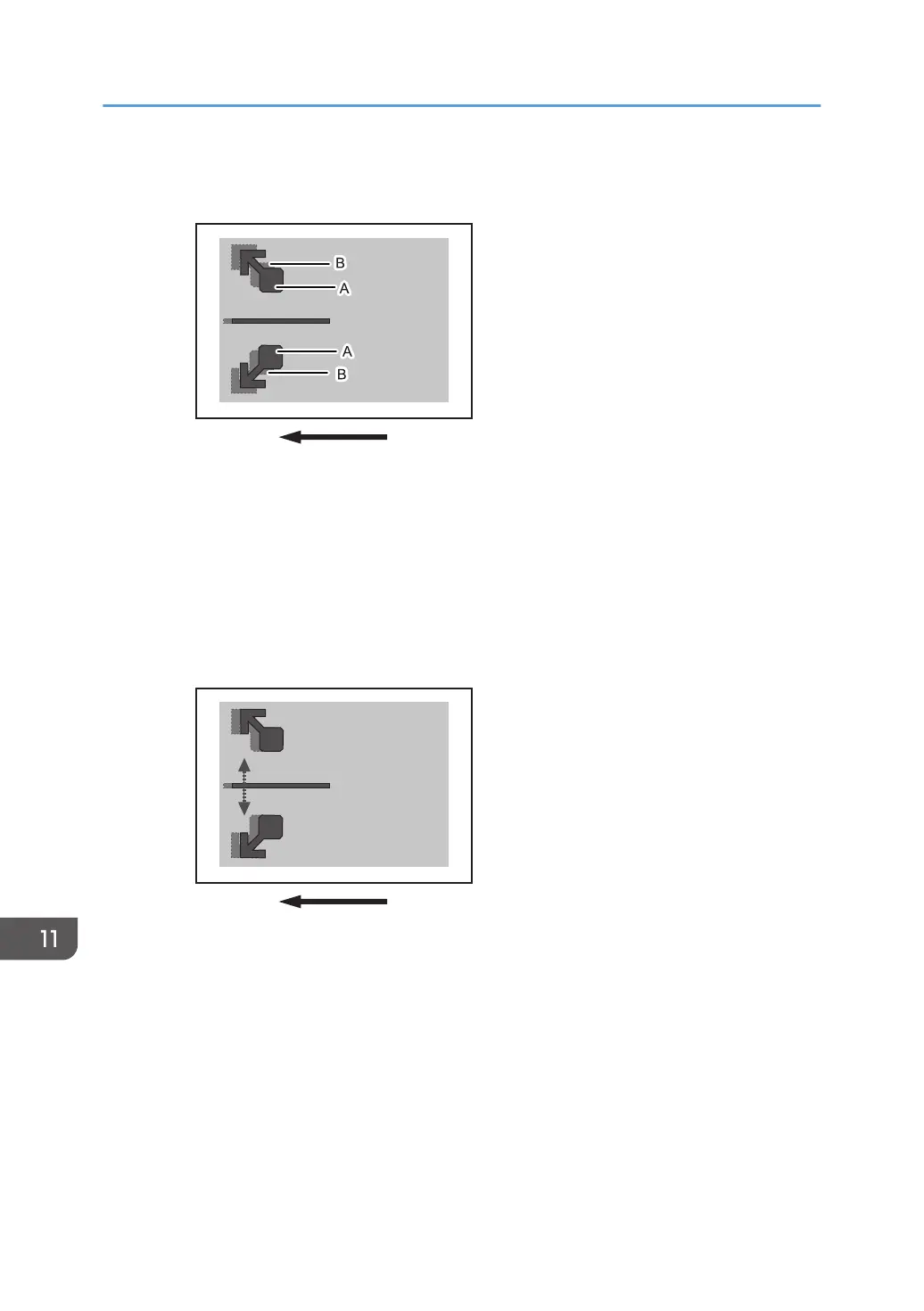

Adjusting magnification to match the length between the arrows (A) on the leading edge of the
paper on Side 2 to the length between the arrows (B) on Side 1
In [Advanced Settings] for the custom paper you are using, select 1101: [Image Position] and
adjust the value in [Across Feed] of [Image Magnification: Side 2]
Press [+] to increase the scaling.
Press [−] to reduce the scaling.
The adjustment value is applied evenly both upward and downward.
To feed A3 paper with its short side parallel to the paper feed direction, increase the value by
0.025% to move the image by approximately 0.1 mm.
<With feed direction>
Adjusting magnification to match the position of the arrow (A) on the trailing edge of the paper on
Side 2 to the position of the arrow (B) on Side 1
11. Advanced Instructions
176
