RIDGID R4513 - Lubrication Points; Brush Replacement Procedure; Available Accessories

44
Look for these accessories where you purchased this product:
089290001183 Dado Throat Plate
AC9934 Flip Top Portable Work Support
ACCESSORIES
WARNING:
Current attachments and accessories available for use with this tool are listed above. Do not use any attachments
or accessories not recommended by the manufacturer of this tool. The use of attachments or accessories not
recommended can result in serious personal injury.
LUBRICATION
This saw’s motor bearings have been packed at the factory
with proper lubrication.
 Clean screw threads and nuts with a solvent
recommended for gum and pitch removal.
 Lubricate screw threads, nuts, and bearing points
(including those on the blade guard assembly and miter
gauge).
BRUSH REPLACEMENT
See Figure 68.
 Unplug the saw.
 Lower blade completely and bevel to 45º. Lock the blade.
 Turn saw upside down.
 Remove brush caps with a screwdriver.
NOTE: Brush assembly is spring load and will pop out
when brush cap is removed.
 Remove brush assemblies and check for wear.
 Replace both brushes when either has less than 1/4 in.
length of carbon remaining. Do not replace one side
without replacing the other.
 Reassemble using new brush assemblies by reversing the
steps listed above. Make sure curvature of brush matches
curvature of motor and that brush moves freely in brush
tube.
Tighten all brush caps securely. Do not overtighten.
MAINTENANCE

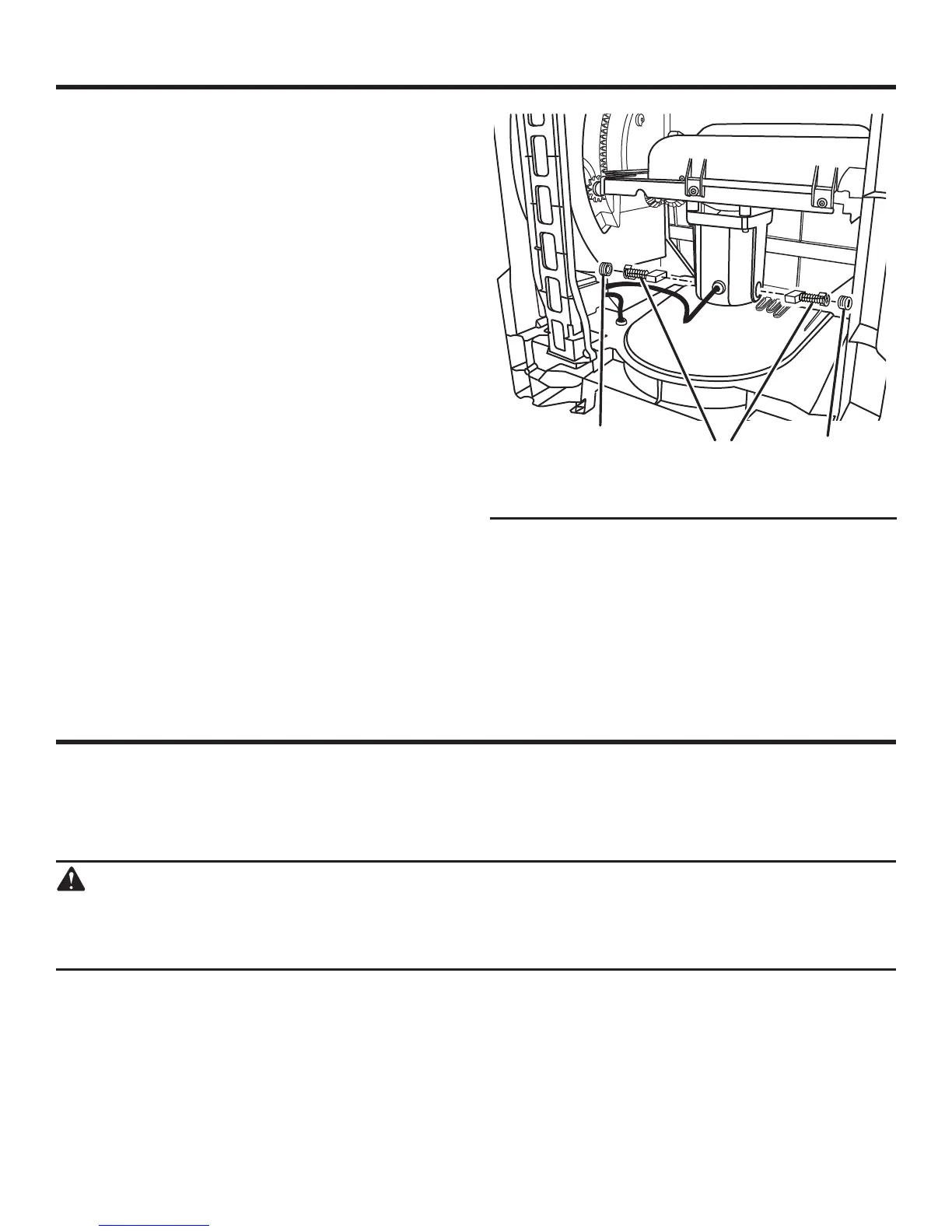

Fig. 68
BRUSH
CAP
BRUSH
ASSEMBLY
BRUSH
CAP
