ASSEMBLY
TO SECURE/LEVEL THE SAW

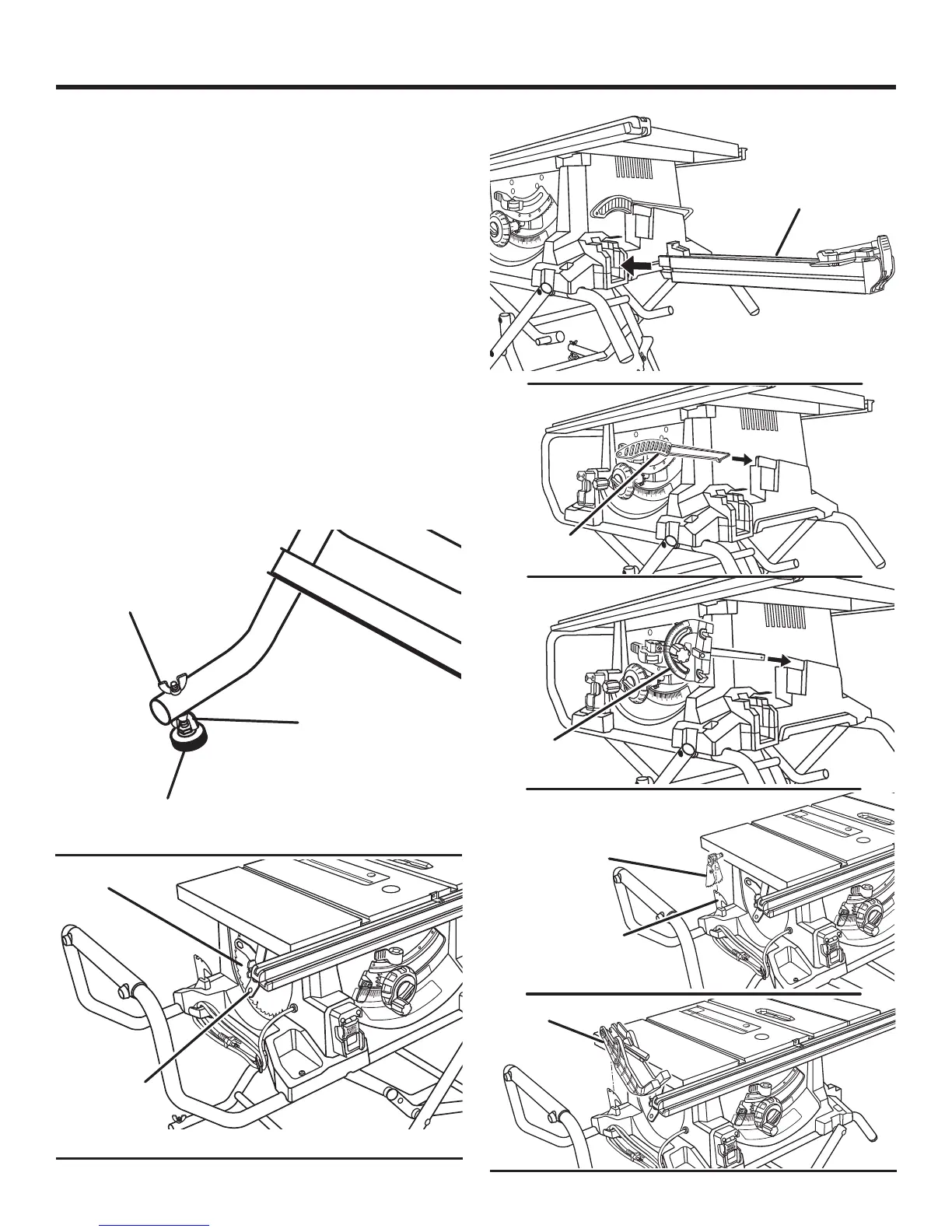

See Figure 12.
With the leg stand open and the table saw resting on a flat,
level surface, the saw should not move or rock from side
to side.
If the saw rocks from side to side, the leveling feet need
adjusting until the leg stand is balanced and level.
Loosen both the top and bottom wing nuts.
Lift the saw slightly so that you may turn the leveling foot
until the leg stand no longer rocks.
• Turning clockwise will lower the foot
• Turning counterclockwise will raise the foot
• Tighten top wing nut once saw is level
TO STORE THE TABLE SAW ACCESSORIES
See Figures 13 - 14.
The table saw has two convenient storage areas (one on
either side of the saw cabinet) specifically designed for the
saw’s accessories. These accessories must be securely
stored prior to closing the leg stand and moving the saw.
Fig. 13
BLADE
GUARD
RIP FENCE
LEVELING
FOOT
WING NUT
(TOP)
Fig. 12
BLADE
WRENCHES
MITER
GAUGE
PUSH
STICK
Fig. 14
ANTI-KICKBACK
PAWLS
ANTI-KICKBACK
PAWLS / BLADE GUARD
STORAGE
BLADE
WING NUT
(BOTTOM)
