Technical description of the burner
4.8 Firing rates

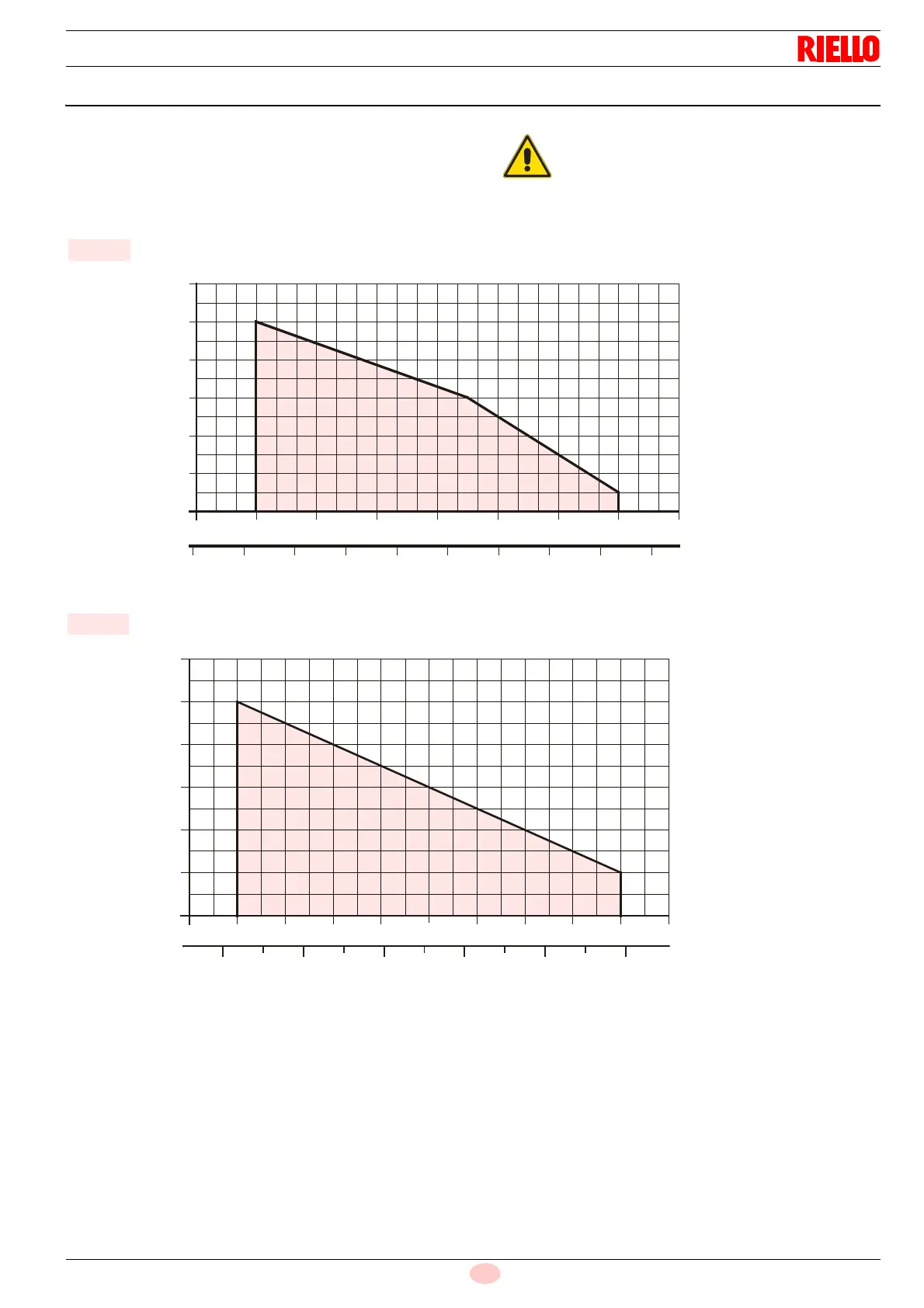

The burner output is chosen from within the diagram area (Fig. 3
and Fig. 4).
WARNING
The firing rates (Fig. 3 and Fig. 4) were obtained
at an ambient temperature of 20 °C, at a baromet-
ric pressure of 1013 mbar (about 0 m a.s.l.) and
with the combustion head regulated as indicated
on page 24.
0
3 4 5 Light oil output – kg/h
35 45 55
Heat output – kW
1.0
0.8
0.6
0.4
0.2
Pressure in the combustion
chamber – mbar
D5416
67
65 75
891011
85
1.2
95 105 115 125
RG2
Fig. 3
0
6 7 8 Light oil output – kg/h
80 100 120 Heat output – kW
2.0
1.6
1.2
0.8
0.4
Pressure in the combustion
chamber – mbar
D5086
910
140 160
11 12 13 14 15 16
180
2.4
RG3
