Installation
5.5 Operating position burners RG2 - RG3
5.6 Operating position burners RG1F - RG2F
WARNING
The burner is designed to work only in positions 1
and 2 (Fig. 7).
Installation 1 (Fig. 7) is preferable, as it is the only
one that allows the maintenance operations as
described later in this manual.
Installation 2 (Fig. 7) allows it to operate but not
with maintenance with hooking to the boiler.
Any other position could compromise the correct
operation of the appliance.
WARNING
Any other positioning could compromise the cor-
rect operation of the appliance.
Installations 3, 4 and 5 (Fig. 7) are forbidden for
safety reasons.

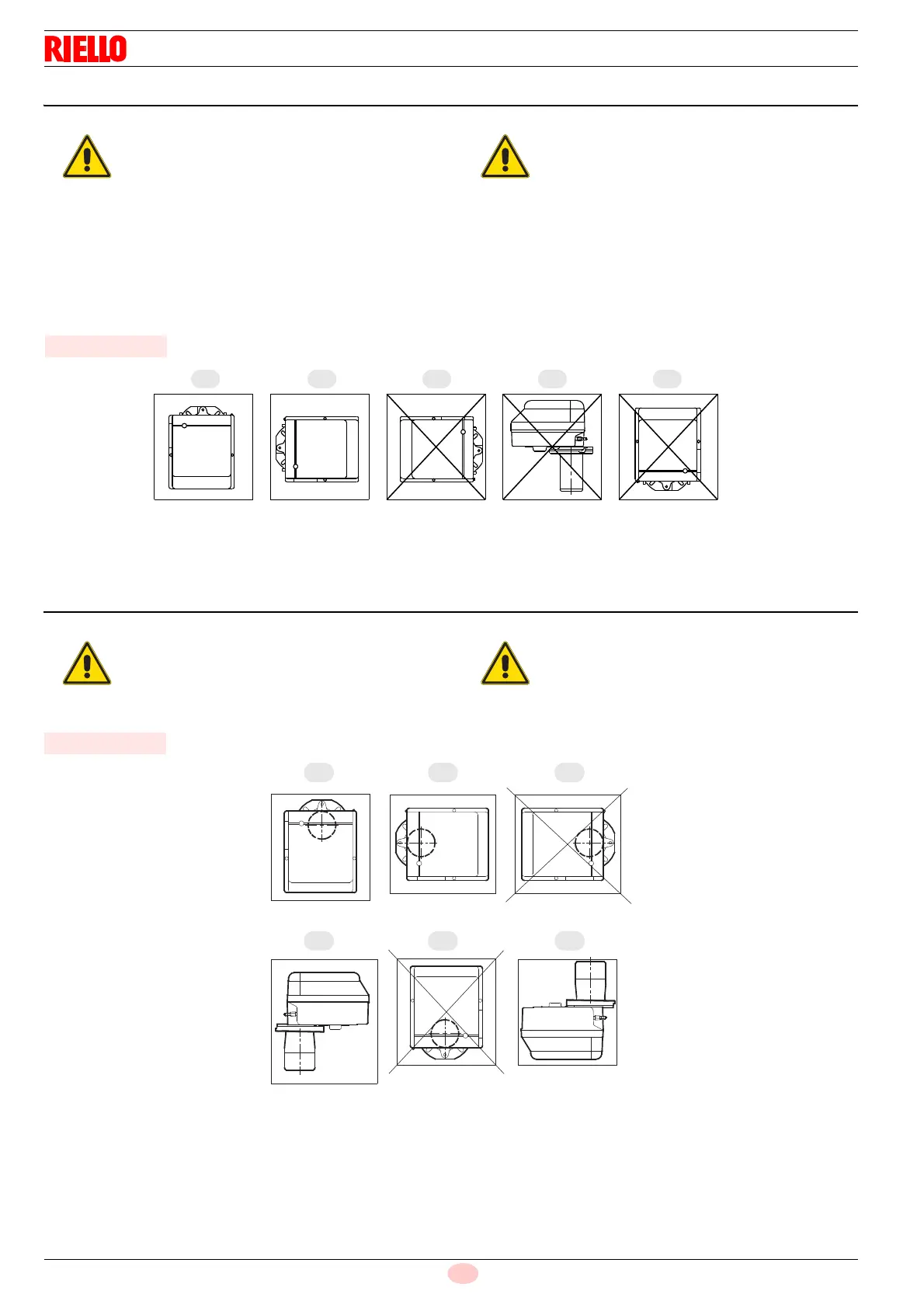

Fig. 7
D7088
1 2 3 4 5
RG2 - RG3
WARNING
The burner is designed to operate only in posi-
tions 1, 2, 4 and 6 (Fig. 8).
Any other position could compromise the correct
operation of the appliance.
WARNING
Any other positioning could compromise the cor-
rect operation of the appliance.
Installations 3, and 5 (Fig. 8) are prohibited for
safety reasons.
Fig. 8
D4420
1 2 3
4 5 6
RG1F - RG2F
