26

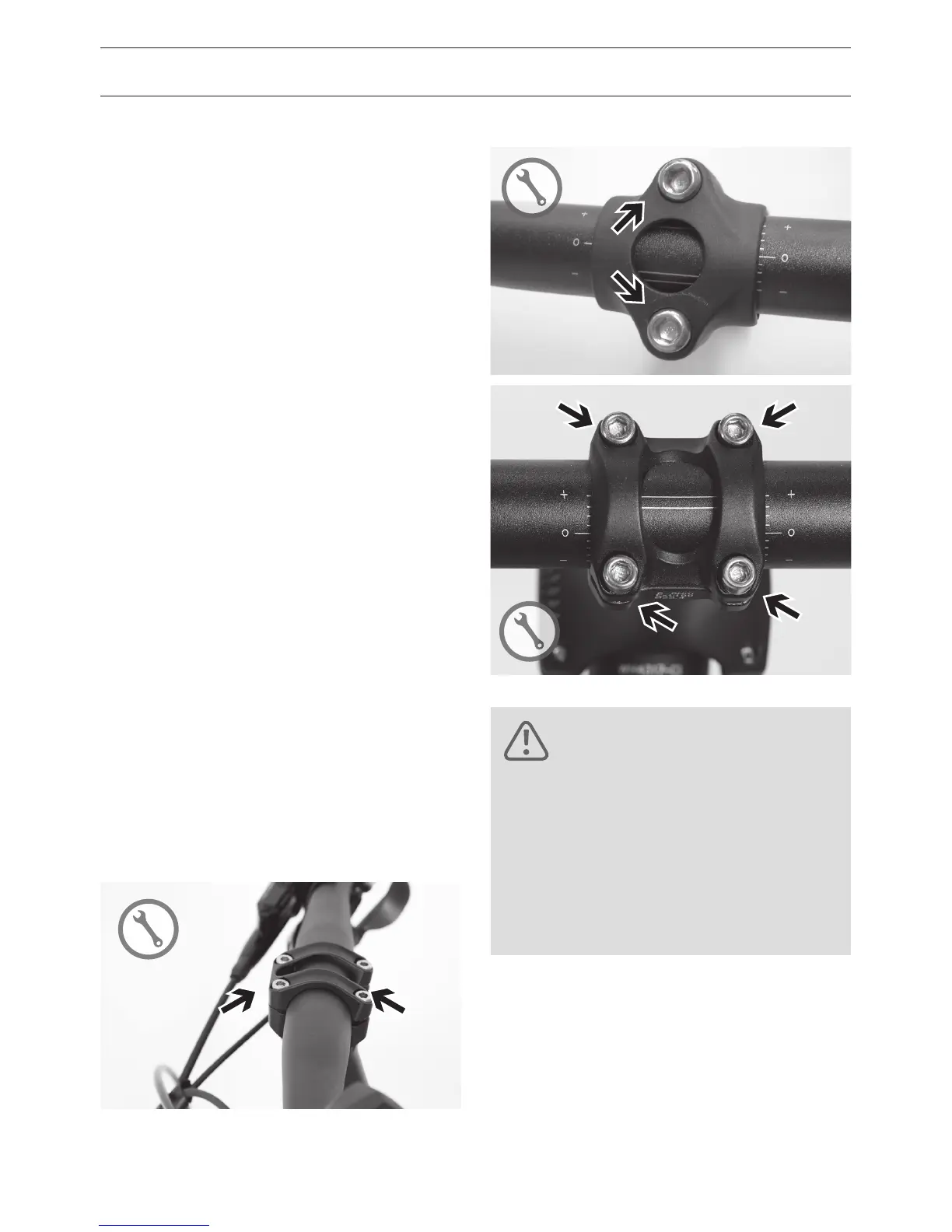

ADJUSTING THE RIDING POSITION
F
H H
H
H
ADJUSTING THE ANGLE OF THE HANDLEBARS
Adjust the handlebars so that the wrists
are relaxed and not too strongly twisted.
Adjust the handlebar position by rotating the
handlebar.
• The Bosch display may cover the bolts of
the handlebar clamp. In this case you must
loosen the four display bracket bolts and
twist the display.
• Loosen the two bolts F or the four bolts H
on the handlebar clamp.
• Rotate the handlebar to the desired posi
-
tion.
• Make sure that the handlebar is clamped
exactly in the middle of the stem.
• Tighten the two bolts F to a torque setting
of 10 Nm or the bolts H to a setting of
5.5 Nm using an “X” pattern.
• Re-tighten the Bosch display bolts again.
The handlebar clamp at the stem of Load/
Kendu/Pony must be tightened first and
gapless at the inscripted side (see arrow A).
Observe the tightening torque (6–8 Nm).
Fix the handlebar by tightening the opposite
bolts.
After modications of stem and
handlebar position you must
check if all cables are still long
enough. It is necessary to have
the full steering range without
any limitations by the cables.
DANGER!
HANDLEBAR ADJUSTMENT
When adjusting grip position, adding bar
ends or changing handlebars, it may be
necessary to replace shifting and brake
cables with longer ones.
A B
