When Burst is enabled, press Type to select “Infinite” and the instrument will set
the trigger source to “Manual” automatically. An infinite cycle pulse sketch will
appear on the screen.

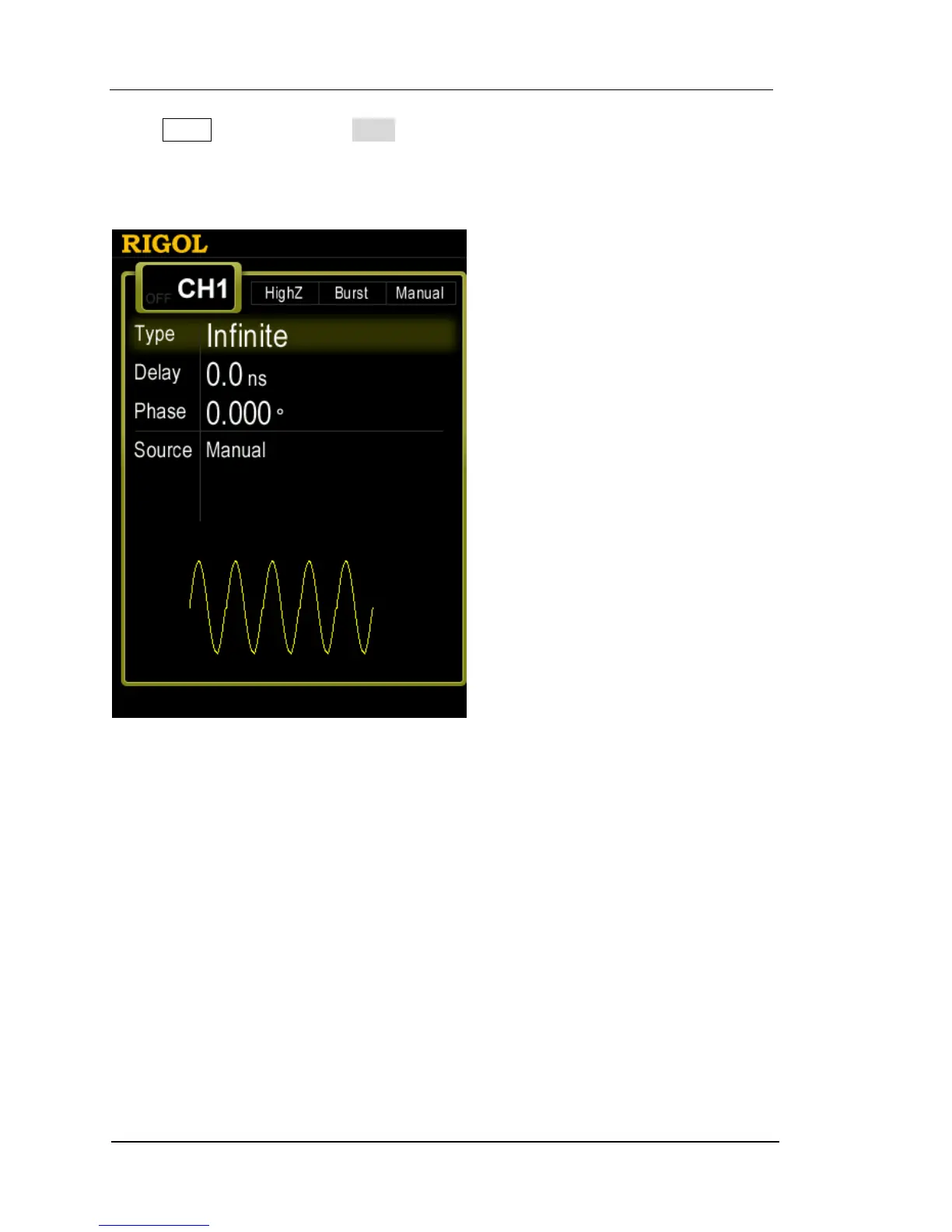

Figure 7-2 Infinite Burst
Gated Burst
In Gated Mode, the generator controls the waveform output according to the
external signal level from the [Mod/FSK/Trig] connector at the rear panel.
Waveform functions which support Gated Burst are Sine, Square, Ramp, Pulse,
Noise and arbitrary waveforms (except DC).
When the gated signal is “True”, the generator outputs a continuous waveform;
when the gated signal is “False”, the generator completes the current period, and
then stops and holds on the voltage level corresponding to the initial burst phase
